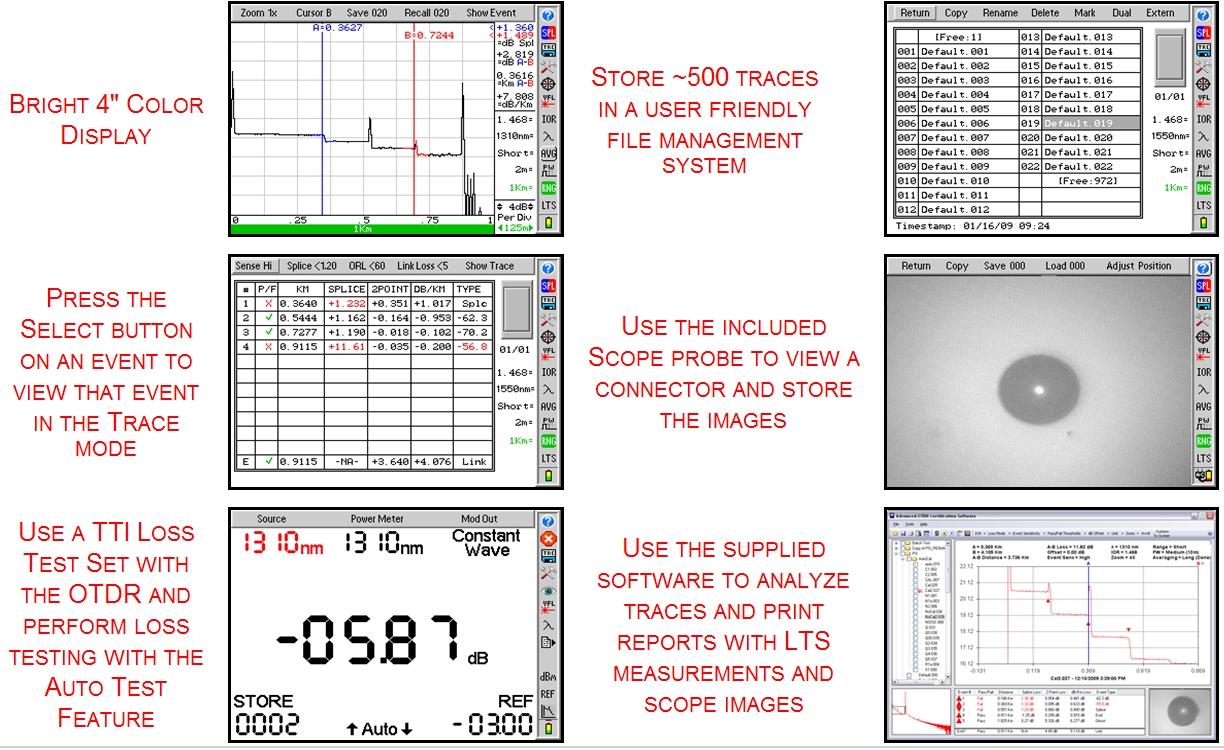

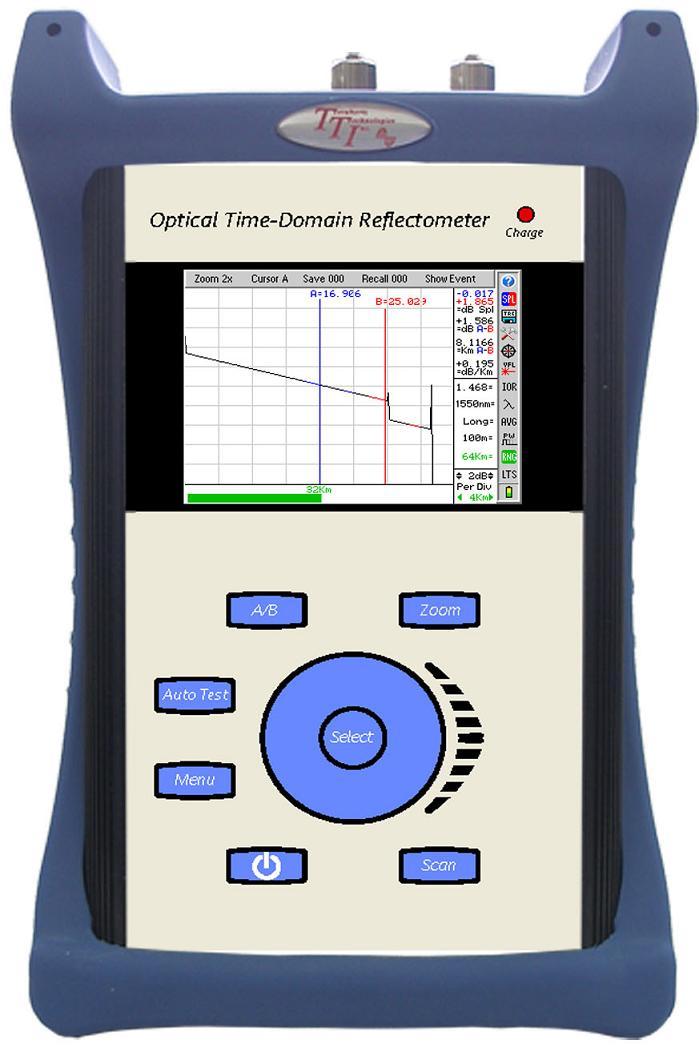

The TTI FTE-7500-131516ACT OTDR offers a standard SM OTDR at 1310/1550nm, an in service OTDR at 1625nm, a fiber optic inspection scope, a broadband autotest loss test set and a visible fault locator. This fast, easy to use, affordable and rugged OTDR boasts all these features at a most affordable price. It has a short dead zone, bright 4" color display and an onboard context sensitive help system that keeps the learning curve for all users to a minimum. The 1/2 second trace updates and great dynamic range make this unit perfect for maintenance and trouble shooting. The TTI FTE-7500 PON OTDR weighs in at less then 2.0 pounds with a hardened water resistant enclosure, this OTDR is great for all conditions. The rubber boot with bail will add protection and provides the ideal angle for viewing the display while operating most anywhere. TTI offers an optional soft carry case with shoulder strap that has a pouch for keeping your video probe close, a second removable accessory pouch and the cover also serves as a stand to keep the unit in a good working position. With its advanced capabilities and ease of use, this unit can be appreciated by novice and seasoned users alike.

31 dB Dynamic Range
Integrated Auto-Wavelength LTS
Instant On
Fast Real time
Event Table with Pass/Fail Feature
Short Dead Zone
Trace Overlay Capability
Onboard Memory for 1000 traces
Built in Video Inspection Scope
Visible Fault Locator
USB Flash Drive Port and Mini USB Port
On-Screen Tutorials
Light Weight Rugged Enclosure
Easy To Read Color Display
Telcordia SR4731 Compatible Software
Long Battery Life

Accesorii standard

Universal Power Adapter w/US, UK, Continental Europe, and Australian Plugs
Interchangeable FC/ST and SC Adapters
Windows/Telcordia SR4731 Software
Rubber Boot

Optiuni recomandate

FTE-7000-131516ACT 1310/1550/nm, and Active 1625nm Triple Wavelength OTDR W/VFL and LTS
FTE-SCASE-LG Soft case for the FTE600-7500 and 8000 series
