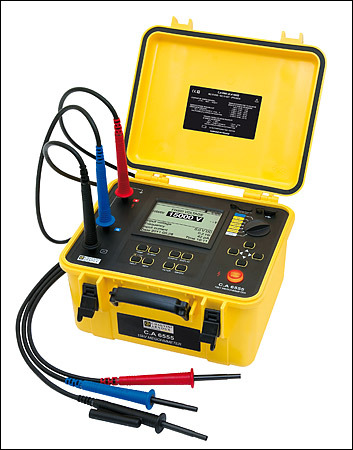

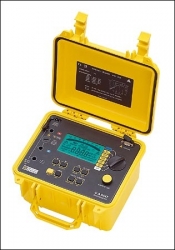

With its site-proof casing, the C.A 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.

Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43

standard which recommends testing insulation at 5-10kV.

Main users: electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.

Other features:

- Wide measurement range from 10 kohm to 30 Tohm

- Fixed or programmable test voltage from 40V to 15 kV

- 5mA max. charging current

- Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs

- Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)

- Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes

- 3 filters to optimize measurement stability

- Calculation of R at a reference temperature

- 80,000-measurement storage capacity and real-time clock

- Optically-isolated USB communication for transfer onto PC and report generation with DataView® software

Accesorii standard

CA6550½ P01139705

CA6555½ P01139706

C.A 6550 and C.A 6555 delivered with

a bag with 2 safety leads 3 m long equipped with an HV plug at each end (red / blue),

1 guard test lead

3 m long equipped with an HV plug at one end and an HV plug with rear

connection at the other end (black),

3 crocodiles clips (red, blue, black),

2 CAT IV 1,000 V test probes (red/black) for voltage measurements,

1 blue lead with rear connection,

1 mains power cable 2 m long,

DataView® software,

1 optical / USB communication lead,

1 operating

manual in 5 languages on CD-ROM and 5 specification labels(1 per language).

Optiuni recomandate

Accessories / Replacement Parts

3 HV leads with croc. clips for 10/15 kV ... P01295466

Blue 8 m HV lead with croc. clips ... P01295468

Red 8 m HV lead with croc. clips ... P01295469

Black 8 m HV lead with croc. clips ... P01295470

Blue 15 m HV lead with croc. clips ... P01295471

Red 15 m HV lead with croc. clips ... P01295472

Black 15 m HV lead with croc. clips ... P01295473

3 x 3 m HV leads for 10/15kV ... P01295465

50 cm HV lead with rear connection ... P01295467

2 red/black test probes ... P01295454Z

3 crocodile clips: red/blue/black ... P01103062

Bag ... P01298066

C.A 861 thermocouple thermometer ... P01650101Z

C.A 846 thermohygrometer ... P01156301Z

Alte produse CHAUVIN ARNOUX

MEGOHMMETRU IZOLATIE 1KV CHAUVIN ARNOUX CA6543

• insulation: up to 4TO (5 cal.) at 50/100/250/500 and 1,000V DC
• automatic calculation of insulation quality ratios: DAR and PI
• programmable test period and plottingof the R(t) curve
• automatic indication of voltage before and after measurement: 1 to 1,000V AC/DC
• resistance: 0.01O to 400kO
• continuity: 0.01O to +40O (audible beep and lead compensation )

APARAT MASURA REZISTENTA IMPAMANTARE PILONI CHAUVIN ARNOUX CA6474

• Ideal for earth measurements on pylons
• measurement range: 0.001 O to 99.99 kO
• resolution: 0.001 to 10 O
• no-load voltage: 16 or 32 VRMS
• measurement frequency: 41 Hz to 5,018 Hz
• measurement of resistance of earth stakes: 0.01 O to 100kO
• leakproofing: IP53

MEGOHMETRU REZISTENTA IZOLATIE 1KV CHAUVIN ARNOUX CA6541

• insulation: up to 4TO (5 cal.) at 50/100/250/500 and 1,000V DC
• automatic calculation of insulation quality ratios: DAR and PI
• programmable test period and plotting of the R(t) curve (automatic memorisation of 20 samples)
• automatic indication of voltage before and after measurement: 1 to 1000V AC/DC
• resistance: from 0.01O to 400kO
• continuity: 0.01O to +40O (audible beep and lead compensation)
• automatic measurement capacity after each insulation measurement: 0.005 to 4.999 ½F

TESTER PANOURI SOLARE FOTOVOLTAICE CHAUVIN ARNOUX FTV200

• I-V curve with cursor
• Voltage measurement up to 1,000 VDC
• Current measurement up to 10 ADC
• Pyranometer up to 2,000 W/m2
• Mesure of r½sistance Rs
• 80 MB internal storage capacity
• More than 10,000 different panel references
• Possibility of external USB key for storage

TESTER RCD CHAUVIN ARNOUX CA6030

• Direct, safe connection to installation mains
• Automatic installation voltage and frequency measurement
• Tests standard, selective, A and AC RCDs
• 5 fixed calibres 10/30/100/300/500mA + 1 calibre adjustable from 6 to 650mA
• Checks RCD trips / trip time measurement (pulse or ramp mode) and exact trip current (ramp mode)

APARAT MASURA REZISTENTA PRIZELOR DE PAMANT CHAUVIN ARNOUX CA6462

• 3-in-1 tester: resistivity, earth, coupling
• measurement range: 0.00 to 2,000? (3 automatic calibres)
• change from 4-wire method to 3-wire method thanks to 1 removable captive bar between E and ES
• 3 fault presence indicators to validate measurement
• measurement frequency: 128Hz

MEGOHMMETRU DIGITAL 100V CHAUVIN ARNOUX CA6531

• insulation: up to 400MO at 50V and 100V
• AC voltage measurement: 0 to 400V
• voltage indication before measurement of insulation: 0 to 600V AC/DC (blocking if U>25V)
• resistance: 0 to 40kO
• capacity: 0 to 4000nF
• current: 0 to 400mA AC/DC

MEGOHMMETRU IZOLATIE 5KV CHAUVIN ARNOUX CA6549

• measurement range: 10k? to 10T?!
• 4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000V
• adjustable test voltage position: 40 to 5,100V in 10V or 100V increments
• step voltage mode: R(Utest) measurement curve viewed on the screen and gradient calculated automatically in ppm/V
• DAR, PI and DD quality ratios calculated automatically
• programmable test length and R(t) measurement curve

TESTER CERTIFICARE EHIPAMENTE SI MASINI ELECTRICE CHAUVIN ARNOUX CA6160

• dielectric test: standard measurement modes (Un from 100 to 5,000V with Ilim 500mA) and programmed modes (t1, t2, t3, U1, U2)
• continuity: up to 100O with 0.1 < ITEST < 25A
• voltage drop: up to 100V (Itest > 10A)
• insulation resistance: up to 1GO at 250/500VDC and 1,000VDC
• measurement of internal and external discharge time (at the plug)
• leakage current: operating and residual up to 20mA, contact up to 2mA
• functional testing: voltage, current, frequency and power

TESTER DIGITAL REZISTENTA IMPAMANTARE CHAUVIN ARNOUX CA6423

• earth resistance: 0.00 to 2,000O (3 cal.)
• 3 fault presence indicators to validate the measurement
• measurement frequency: 128Hz
• connection of rods to colour-coded terminals
• a removable captive connection strip between H and S for measurement of 2-wire resistance
• large 2,000-count digital display with 18mm digits: excellent readability
