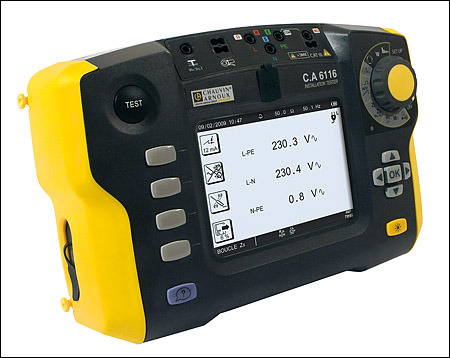

The C.A 6116 is an ALL-IN-ONE tool for electrical installation testing in compliance with the national and international standards (IEC 60364-6, NF C 15-100, VDE 100, XP C 16-600, etc). It combines design, ergonomics, simplicity, rapidity and accuracy. Suitable for all types of neutral systems (TT, TN, IT), it can be used in all the main sectors:

industry, tertiary and housing.

Rugged and compact, the C.A 6116 is specially designed to be quick and effective to learn. On the large backlit graphic screen, the user can view all the essential results at a glance.

A rotary switch on the instrument's front panel gives direct access to all the functions. A wide range of audible alarms and visual symvbols are available for quick interpretation of the results according to the standards.

The contextual help for each function guides users step-by-step or only when needed. The high-performance C.A 6116 offers excellent measurement stability, including in disturbed industrial environments. With the C.A 6116, users can prepare their measurement campaigns directly in the measurement instrument or via the PC

software supplied. This function allows hierarchical storage on the basis of the site, the location and the equipment tested.

Delivered in a carrying bag with a large number of accessories, the standard version also includes a wrist-strap and a 4-point harness for "hands-free" use.

Accesorii standard

C.A 6116 (EURO version)½ ½½ P01145450

C.A 6116 (GB version)½½½½ P01145450A

C.A 6116 (IT version)½½½½½ P01145450B

C.A 6116 (CH version)½½½½ P01145450C

C.A 6116 (US version)½½½½½ P01145450D

C.A 6116 tester delivered with

1 USB cable,

1 three-pin/mains lead,

1 three-pin lead / 3 safety leads,

3 test probes (½ 4 mm),

3 crocodile clips,

2 straight/elbowed safety leads (3 m),

remote-control probe,

mains power pack,

wrist strap,

4-point strap for extra comfort,

carrying bag,

data export software,

5 safety connectors and 5 operating manuals (1 per language).

Optiuni recomandate

15 m earth kit (red / blue / green)½½P01102017

50 m earth kit½½½½½½½½ P01102021

100 m earth kit½ ½½½½½½ P01102022

1P 30 m black earth kit½½½½ P01102018

C177 clamp½ ½½½½½½½½ P01120335

C177A clamp½ ½½½½½½½ P01120336

MN77 earth kit½ ½½½½½½ P01120460

Continuity pole½ ½½½½½½ P01102084

DataView½½½½½½½½½½ P01102095

Battery pack½½½½½½½½½ P01296024

USB lead½ ½½½½½½½½½ P01295293

PA 30 W mains power pack½½ P01102057

Screen-protection film½ ½½½ P01102094

4-point strap½½½½½½½½ P01298073

Carrying bag½½½½½½½½ P01298056
