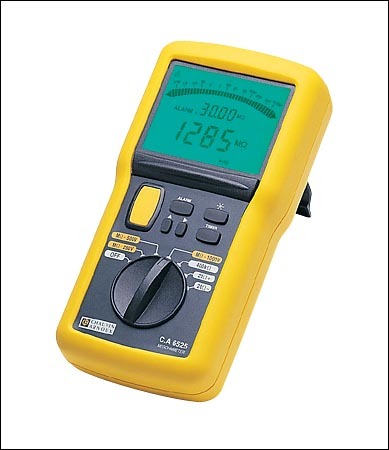

Megohmmetru izolatie 1kV Chauvin Arnoux CA6525

Cod: Chauvin Arnoux CA6525




Descriere

Particularly innovative and user-friendly, the C.A 6525 insulation tester is ideal for testing electrical installations and equipment:



  • insulation: up to 2G? at 250V, 500V and 1,000V DC
  • voltage indication before insulation measurement: 0 to 600V AC/DC (blocking if U>25V)
  • continuity: -20? to +20? (audible beep and compensation of leads)
  • resistance: 0 to 400k?
  • giant 4,000-count display + bargraph (simultaneous reading of the measurement and analogue variance)
  • backlit rear display
  • programming of alarms
  • timer function (0 to 15min)
  • remote control probe available as an option
  • back stand for use on a table or on the ground
  • long battery life: 6 x 1.5V batteries
  • Measurements in compliance with IEC 61557, NF C 15-100, VDE 0413
  • electrical safety: IEC 1010 600V Cat. II
  • dimensions: 211 x 108 x 60mm; weight: 830g





Accesorii standard

C.A 6521...................P01140801D

C.A 6523...................P01140802D

C.A 6525...................P01140803D



½ 1 ½hands-free½ carrying case

½ 1 pair of 1.5 m leads, red + black

½ 1 red croc-clip

½ 1 black test probe

½ 6 LR6 batteries

½ 1 set of operating instructions
