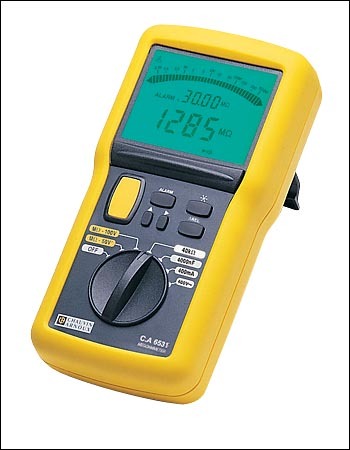

Perfectly suitable for tests on telephone lines or electronic equipment, the C.A 6531 megohmmeter measures insulation at 50V and 100V as well as resistances, current capacity and AC/DC voltage.

insulation: up to 400MO at 50V and 100V
AC voltage measurement: 0 to 400V
voltage indication before measurement of insulation: 0 to 600V AC/DC (blocking if U>25V)
resistance: 0 to 40kO
capacity: 0 to 4000nF
current: 0 to 400mA AC/DC
giant, 4000-count display + bargraph (simultaneous reading of the measurement and analogue variation)
backlit display
programmable alarms
DREL function for testing for the presence of transmission frame or measurement of the resistance difference of 2 wires of a pair
direct display in km of the length of the line being tested
remote control probe (option)
back stand for use on a table or on the ground
high autonomy: 6 b

Accesorii standard

C.A 6531...................P01140804B

C.A 6533...................P01140805

½ 1 "hands-free" carrying case

½ 1 pair of 1.5 m leads, red + black

(the leads on C.A 6533 are guarded)

½ 1 red croc-clip

½ 1 black test probe

½ 2 wire grips, red + black

½ 6 LR6 batteries

½ 1 set of operating instructions.

* + 1 blue 1.5 m lead and 1 blue croc-clip for model C.A 6533
