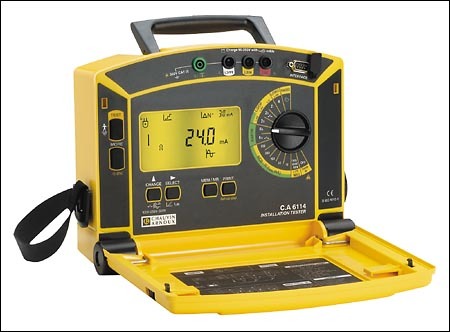

Simple, safe and high-performance, the C.A 6114 has quickly proved an essential tool for all the tests required by the NF C 15-100, VDE 0100, NIN/NIV, IEE 16th and ½VE EN-1 standards, which call for a series of tests on all LV installations at delivery and then periodically thereafter.

automatic installation status test immediately after connection
measurement of voltage (10 to 440V AC/DC) and frequency (15.3 to 450Hz)
installation insulation measurement at 500V
standard earth connection resistance measurement (1 stake + loop method)
PE conductor continuity test
measurement of internal loops (verification of capabilities of protective devices already in place)
testing of RCDs up to 500mA (exact tripping time and current)
phase rotation testing
alarms on all functions
800-measurement memory and RS 232 interface
excellent ergonomics: site-proof casing with neck strap, large backlit display
limited number of keys to avoid mistakes
marked connections and cleverly-designed measurement cables
NiMH rechargeable batteries + built-in charger for quick recharge
complies with IEC 1010-1 Cat.III 300V
dimensions: 295 x 230 x 108mm; weight: 2.1kg

Accesorii standard

½ C.A 6114 Tester . . . . . . . . . . . . .P01.1454.32

Delivered with a small carrying bag containing a 2.5-m cable for measuring or charging

with 2P+GND power plug, a 2.5-m measuring cable with 3 separate cords, 3 test

probes (red, yellow, white) and 3 crocodile clips, and a 3 m green lead with a test probe.

Optiuni recomandate

½ ½EARTH½ option . . . . . ... . . . .P01.1019.99

rigid shoulder carrying case with a fitted space for the instrument, containing 30 m

of cable on a reel + a earthing rod

½ Remote control probe . . . . . . . .. . . .P01.1019.42

½ C.A 611X UTILITY software . .. . . . .P01.1019.02

delivered with DB9F/DB25Fx2 cable + DB9M/DB9M gender changer

½ No. 5 serial printer . . . . . . . .. . . . . .P01.1029.03

delivered with DB9F/DB9M cable + DB9M/DB9M adapter

½ Adapter for parallel printer . . . . .. . . . . .P01.1019.04

delivered with DB9F/DB25Fx2 cable + DB9M/DB9M gender changer

Alte produse CHAUVIN ARNOUX

MEGOHMMETRU IZOLATIE 5000V CHAUVIN ARNOUX CA6545

• wide range from 30k? to 10T? !
• 4 fixed test voltages: 500/1,000/2,500 and 5,000V
• programmable test voltage position: from 40 to 5,100V in increments of 10V or 100V
• giant backlit LCD screen with digital display + bargraph
• qualitative analysis: automatic calculation of DAR, PI and DD

TESTER EHIPAMENTE MASINI SI TABLOURI ELECTRICE CHAUVIN ARNOUX CA6155

• Measurements in compliance with the IEC 60204 Ed.5 / VDE701/702 / IEC 61439 (IEC 60439) standards
• 200 mA and 10 A continuity measurements
• Insulation resistance at 250 VDC and 500 VDC
• Dielectric test at 1,000 V / 1,890 V / 2,500 V
• Leakage current measurement by substitution method
• Differential leakage current
• Contact leakage current
• Mains power-lead polarity test

TESTER RAPORT TRANFORMATOARE CHAUVIN ARNOUX DTR8510

• calculate the ratios
• NiMH battery life of up to 10 hours
• Automatic calibration and balancing
• Low-voltage test
• Digital display ½ display of ratios, winding direction - % deviation
• Degauss function

APARAT MASURA REZISTENTA IMPAMANTARII CHAUVIN ARNOUX CA6460

• 3-in-1 tester: resistivity, earth, coupling
• measurement range: 0.00 to 2,000? (3 automatic calibres)
• change from 4-wire method to 3-wire method thanks to 1 removable captive bar between E and ES
• 3 fault presence indicators to validate measurement
• measurement frequency: 128Hz

MEGOHMMETRU IZOLATIE 1KV CHAUVIN ARNOUX CA6543

• insulation: up to 4TO (5 cal.) at 50/100/250/500 and 1,000V DC
• automatic calculation of insulation quality ratios: DAR and PI
• programmable test period and plottingof the R(t) curve
• automatic indication of voltage before and after measurement: 1 to 1,000V AC/DC
• resistance: 0.01O to 400kO
• continuity: 0.01O to +40O (audible beep and lead compensation )

MEGOHMMETRU 15KV CHAUVIN ARNOUX CA6555

• Wide measurement range from 10 kohm to 30 Tohm
• Fixed or programmable test voltage from 40V to 15 kV
• 5mA max. charging current
• Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs
• Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)
• Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes

MEGOHMETRU REZISTENTA IZOLATIE 1KV CHAUVIN ARNOUX CA6541

• insulation: up to 4TO (5 cal.) at 50/100/250/500 and 1,000V DC
• automatic calculation of insulation quality ratios: DAR and PI
• programmable test period and plotting of the R(t) curve (automatic memorisation of 20 samples)
• automatic indication of voltage before and after measurement: 1 to 1000V AC/DC
• resistance: from 0.01O to 400kO
• continuity: 0.01O to +40O (audible beep and lead compensation)
• automatic measurement capacity after each insulation measurement: 0.005 to 4.999 ½F

APARAT MASURA REZISTENTA IMPAMANTARE CHAUVIN ARNOUX CA6471

• extensive measurement ranges: 0.001? to 100 k?
• adjustment of the measurement frequency between 41 Hz and 512 Hz
• 10 times greater accuracy due to its 4-pole measurement method
• measuring soil resistivity
• calculate r automatically by the Wenner or Schlumberger methods
• Ergonomic, comprehensive and accurate

APARAT MASURA REZISTENTA PRIZE PAMANT CHAUVIN ARNOUX CA6470N TERCA3

MEGOHMMETRU IZOLATIE 5KV CHAUVIN ARNOUX CA6549

• measurement range: 10k? to 10T?!
• 4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000V
• adjustable test voltage position: 40 to 5,100V in 10V or 100V increments
• step voltage mode: R(Utest) measurement curve viewed on the screen and gradient calculated automatically in ppm/V
• DAR, PI and DD quality ratios calculated automatically
• programmable test length and R(t) measurement curve
