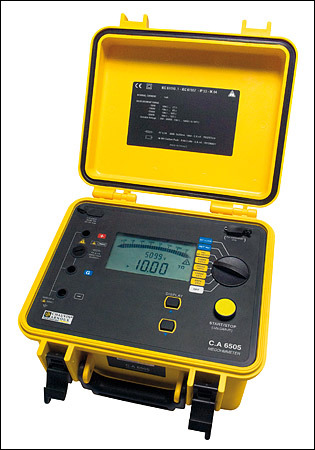

Megohmmetru izolatie 5kV Chauvin Arnoux CA6505

Cod: Chauvin Arnoux CA6505




Brosura produs PDF, 0.72 Mb

Descriere

The C.A 6505 makes industrial equipment inspection and maintenance testing particularly

simple.



  • Adjustable test voltage: 40 V to 5,100 V in 10 or 100 V increments
  • 500 V: 10 kO to 2 TO
  • 1,000 V: 10 kO to 4 TO
  • 2,500 V: 10 kO to 10 TO
  • 5,000 V: 10 kO to 10 TO



In its site-proof casing suitable for even the severest conditions, the C.A 6505 offers optimum accuracy and expertise for insulation testing.

As soon as it is connected, it measures the voltage, frequency, capacitance and residual current values on the installation or equipment to be tested.

The C.A 6505 megohmmeter is delivered in a bag with 2 measurement leads 2 m long, crocodile clips and 2 guarded safety leads.



Accesorii standard

½ C.A 6505 Megohmmeter ................................. P01139704

Delivered with a carrying bag containing:

½ 2 simplified measurement leads 2 m long, equipped with an HV plug at

each end (red / blue)

½ 1 guarded safety lead 2 m long, equipped with an HV plug at one end and

an HV plug with rear connection at the other end (black)

½ 1 guarded safety lead 0.35 m long, equipped with an HV plug at one end and

an HV plug with rear connection at the other end (blue)

½ 3 crocodile clips (red, blue and black)

½ 1 mains power cable 1.80 m long

½ 1 operating manual in 5 languages
