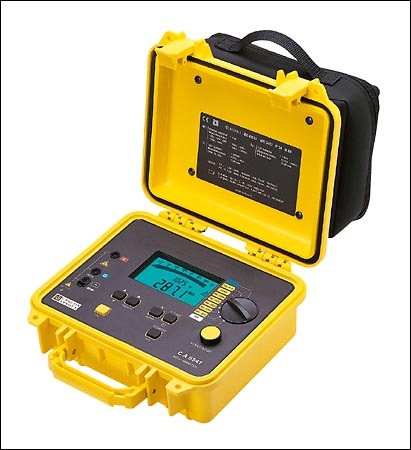

The C.A 6541 is a high-performance 50V to 1kV insulation tester; it supports the most demanding site conditions and is ideal for qualitative insulation analysis.

insulation: up to 4TO (5 cal.) at 50/100/250/500 and 1,000V DC
automatic calculation of insulation quality ratios: DAR and PI
programmable test period and plotting of the R(t) curve (automatic memorisation of 20 samples)
automatic indication of voltage before and after measurement: 1 to 1000V AC/DC
resistance: from 0.01O to 400kO
continuity: 0.01O to +40O (audible beep and lead compensation)
automatic measurement capacity after each insulation measurement: 0.005 to 4.999 ½F
microprocessor-controlled
giant LCD screen with digital display + bargraph
backlit display
SMOOTH function (smoothing of values displayed)
insulation test voltages can be locked
programmable alarms

½ long battery life: 8 x LR14 batteries (21,000 insulation tests of 5s each)

½ remote control probe available as an option

½ electrical security: IEC 61010-1 + A2 ½ Cat. III - 600V and IEC 61557

½ dimensions: 240 x 185 x 110mm; weight: 3.4kg

Accesorii standard

C.A 6541 P01.1389.01

C.A 6543 P01.1389.02

Complete with carrying bag containing all the accessories:

_ 2 x 1.5 m safety leads (red/blue)

_ 1 x 1.5 m guarded safety lead (black)

_ 3 x crocodile clips (red/blue/black)

_ 1 x test probe (black)

_ 1 x 2-sided condensed user½s manual

_ 1 user½s manual

_ 8 x LR14 batteries (for C.A 6541)

or 1 x 2m mains lead (for C.A 6543)

Optiuni recomandate

OPTIONAL ACCESSORIES:

Remote control probe P01.1019.35

PC software for C.A 6543 P01.1019.38

Serial printer for C.A 6543 P01.1029.03

Serial-to-parallel adapter

for C.A 6543 P01.1019.41

Pair of 2 test probe leads

(red/ black) P01.1018.55

Set of 3 x 3m safety leads

(red/blue/guarded black) P01.2951.70
