Megohmmetru izolatie 5000V Chauvin Arnoux CA6545

Cod: Chauvin Arnoux CA6545




Brosura produs PDF, 0.72 Mb

Descriere

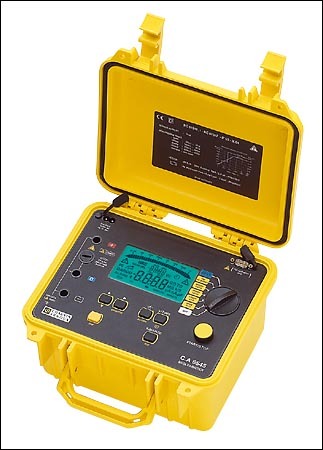

In its site-proof case, the C.A 6545 megohmmeter can be used for quantitative and qualitative analysis of insulation. It also automatically measures voltage, capacitance and residual current.



  • wide range from 30k? to 10T? !
  • 4 fixed test voltages: 500/1,000/2,500 and 5,000V
  • programmable test voltage position: from 40 to 5,100V in increments of 10V or 100V
  • giant backlit LCD screen with digital display + bargraph
  • qualitative analysis: automatic calculation of DAR, PI and DD (dielectric discharge) ratios and tracing of the R(t) curve
  • numerous functions: programmed test duration, lock-in of test voltage, smooth function, programmable alarms, etc.
  • power supply: rechargeable NiMH battery with a 30-day service life for 10 DAR measurements and 5 PI measurements per day
  • electrical safety: IEC 61010-1 Cat.III 1,000V or Cat.I 2,500V and 61557
  • dimensions: 270x250x180mm; weight: 4.3kg





Accesorii standard

C.A 6545 Megohmmeter .................................... P01139701

Delivered with a carrying bag containing:

½ 2 safety leads 3 m long with HV plug and HV crocodile clip (red/blue)

½ 1 guarded safety plug 3 m long with an HV plug with rear connection

and an HV crocodile clip (black)

½ 1 lead with rear connection (blue) 0.35 m long

½ 1 mains power cable 2 m long

½ 1 simplified operating manual

½ 1 operating manual in 5 languages



Optiuni recomandate





Alte produse CHAUVIN ARNOUX

MEGOHMMETRU IZOLATIE 5KV CHAUVIN ARNOUX CA6505

• Adjustable test voltage: 40 V to 5,100 V in 10 or 100 V increments
• 500 V: 10 kO to 2 TO
• 1,000 V: 10 kO to 4 TO
• 2,500 V: 10 kO to 10 TO
• 5,000 V: 10 kO to 10 TO



MEGOHMMETRU DIGITAL 1000V CHAUVIN ARNOUX CA6523

• insulation: up to 2G? at 500V and 1,000V DC
• voltage indication before insulation measurement: 0 to 600V AC/DC (blocking if U>25V)
• continuity: -20? to +20? (audible beep and compensation of leads)
• resistance: 0 to 400k?
• giant 4,000-count display + bargraph


MEGOHMMETRU IZOLATIE 5000V CHAUVIN ARNOUX CA6545

• wide range from 30k? to 10T? !
• 4 fixed test voltages: 500/1,000/2,500 and 5,000V
• programmable test voltage position: from 40 to 5,100V in increments of 10V or 100V
• giant backlit LCD screen with digital display + bargraph
• qualitative analysis: automatic calculation of DAR, PI and DD



MEGOHMMETRU DIGITAL 100V CHAUVIN ARNOUX CA6531

• insulation: up to 400MO at 50V and 100V
• AC voltage measurement: 0 to 400V
• voltage indication before measurement of insulation: 0 to 600V AC/DC (blocking if U>25V)
• resistance: 0 to 40kO
• capacity: 0 to 4000nF
• current: 0 to 400mA AC/DC


MEGOHMMETRU DIGITAL 500V CHAUVIN ARNOUX CA6521

• insulation: up to 2G? at 250V and 500V DC
• voltage indication before insulation measurement: 0 to 600V AC/DC (blocking if U>25V)
• continuity: -20? to +20? (audible beep)
• giant 400-count display + bargraph (simultaneous reading of measurement and analogue variance)
• back stand for use on a table or on the ground
• long battery life: 6 x 1.5V batteries


MEGOHMMETRU IZOLATIE 500V CHAUVIN ARNOUX CA6533

• insulation: up to 20G? at 50V, 100V, 250V and 500V
• voltage indication before insulation measurement: 0 to 600V AC/DC (blocking if U>25V)
• resistance: 0 to 400kO
• giant 4,000-count display + bargraph
• backlit display
• programmable alarms


APARAT MASURA REZISTENTA IMPAMANTARII CHAUVIN ARNOUX CA6460

• 3-in-1 tester: resistivity, earth, coupling
• measurement range: 0.00 to 2,000? (3 automatic calibres)
• change from 4-wire method to 3-wire method thanks to 1 removable captive bar between E and ES
• 3 fault presence indicators to validate measurement
• measurement frequency: 128Hz



APARAT MASURA REZISTENTA PRIZELOR DE PAMANT CHAUVIN ARNOUX CA6462

• 3-in-1 tester: resistivity, earth, coupling
• measurement range: 0.00 to 2,000? (3 automatic calibres)
• change from 4-wire method to 3-wire method thanks to 1 removable captive bar between E and ES
• 3 fault presence indicators to validate measurement
• measurement frequency: 128Hz



MEGOHMMETRU 15KV CHAUVIN ARNOUX CA6555

• Wide measurement range from 10 kohm to 30 Tohm
• Fixed or programmable test voltage from 40V to 15 kV
• 5mA max. charging current
• Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs
• Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)
• Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes
