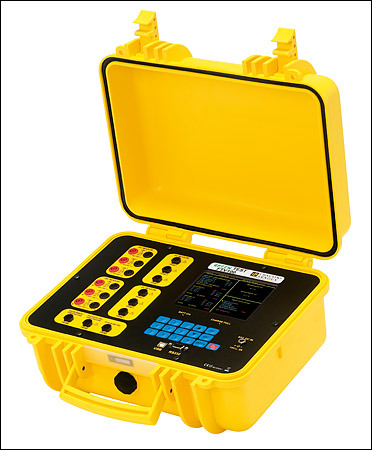

The FTV100 can be used to measure and display all the physical and electrical parameters of solar power installations simultaneously while also storing them.

This highly-effective instrument can perform all the measurements needed to calculate the efficiency of the solar power installation:

- electrical power survey

- Calculation of solar panel efficiency

- Calculation of inverter efficiency

The GREENTEST FTV100 has a large extra-bright 5.7" colour LCD screen with anti-reflective treatment making it particular easy to read in all circumstances.

It is just as easy to set up as it is to use.

Users install their physical measurement probes: a Pt100 probe for ambient temperature measurement, a Pt100 probe for the panel temperature and a pyranometer for the insolation. They then connect the voltage leads and current clamps and configure the FTV100 with the panel-manufacturer's parameters to serve as a reference.

To transmit the measurement results remotely, the FTV100 has a remote module operating via a wired link (15 m) or via Bluetooth (100 m).

In addition, the GREENTEST Report software can be used to acquire all the measurements in real time. At a glance, the display of the curves enables users to make an initial assessment of whether the installation is operating correctly or not. The software includes graphic analysis of the measurements and report printing.

Technical specifications

- Voltage up to 1,000 VDC / 600 VAC

- Current up to 1,400 ADC / 3,000 AAC

- AC/DC power: 20,000 WDC / 1,200 WAC

- Data recorder: up to 10 instrument configurations can be prerecorded in the memory

- 600 V CAT IV ½ 1,000 V CAT III

- IP67 closed / IP54 open

Accesorii standard

GREENTEST FTV100, version with 1 DC input

1 PAC10-FTV DC + 3 MN-FTV AC type clamps > P01160700

Delivered with IP67 site-proof case, 1 pyranometer for insolation measurement

with 5 m cable, 1 Pt100 probe for ambient temperature with 3 m cable,

1 Pt100 probe for panel temperature with 3 m cable, 3 AC current clamps

(MN-FTV) with 3 m cable, 1 DC current clamp (PAC10-FTV) with 3 m cable,

4 x 3 m leads with test probes, 1 rechargeable battery with mains adapter,

data processing software, 1 carrying bag, 1 certi. cate of conformity, 1 SIT

calibration certi. cate for the pyranometer.

GREENTEST FTV100, version with 3 DC inputs

3 PAC10-FTV DC current clamps + 3 MN-FTV AC clamps > P01160720

The same as the 1-DC-input version plus the kit for measurements

on installations with 3 DC inputs.

Optiuni recomandate

Accessories

3-DC-input installation measurement kit > P01160710

Delivered with 2 PAC10-FTV current clamps and 3 m cable,

2 sets of leads with test probes (3 m)

GREENTEST FTV100 REMOTE Unit > P01160736

Delivered with 4 x 1.5 V batteries, 2 male/male RS232 connectors

for soldering, 1 fastening strap

½Cable½ communication kit > P01160737

15 m series cable, 9-pin male/male RS232 connectors

½Bluetooth½ communication kit > P01160738

2 Bluetooth adapters (transmitter/receiver), 2 male/female RS232 series

cables 20 cm long, adapter programming software

PAC10-FTV PAC DC clamp (200 ADC) > P01160734

PAC20-FTV PAC DC clamp (1400 ADC) > P01120092

MN13-FTV MN AC clamp (200 AAC) > P01160733

C107-FTV Type C AC clamp (1000 AAC) > P01120337

D43-FTV Type D AC clamp (3000 AAC) > P01120100

Set of crocodile clips ½ 4 mm (R/N) > P01102052Z

FTV100 battery > P01160735
