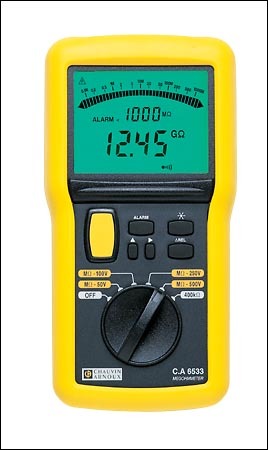

Ideal for tests on telephone lines or electronic equipment, the C.A 6533 megohmmeter measures insulation at 50V, 100V, 250V and 500V, as well as resistance. It indicates the AC/DC voltage before each measurement.

insulation: up to 20G? at 50V, 100V, 250V and 500V
voltage indication before insulation measurement: 0 to 600V AC/DC (blocking if U>25V)
resistance: 0 to 400kO
giant 4,000-count display + bargraph (simultaneous reading of the measurement and analogue variation)
backlit display
programmable alarms
DREL function for testing for the presence of transmission frame or measurement of the difference in resistance between 2 wires of a pair
remote control probe (option)
back stand for use on a table or on the ground
long battery life: 6 x 1.5V batteries
Measurements in compliance with IEC 61557, NF C 15-100, VDE 0413
electrical safety: IEC 1010 300V Cat. III

Accesorii standard

C.A 6531...................P01140804B

C.A 6533...................P01140805

½ 1 "hands-free" carrying case

½ 1 pair of 1.5 m leads, red + black

(the leads on C.A 6533 are guarded)

½ 1 red croc-clip

½ 1 black test probe

½ 2 wire grips, red + black

½ 6 LR6 batteries

½ 1 set of operating instructions.

* + 1 blue 1.5 m lead and 1 blue croc-clip for model C.A 6533
