BAUR PGK 50E / PGK 80E DC high-voltage test device

Cod: BAUR PGK 50E / PGK 80E




Brosura produs PDF, 0.45 Mb

Descriere

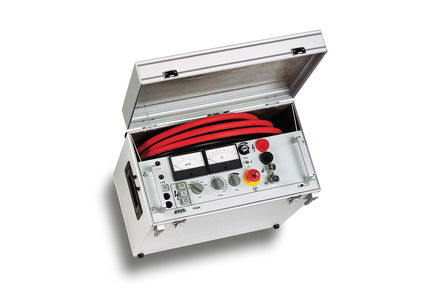

The portable, one-piece PGK 50 and PGK 80 high-voltage test device for generating negative DC voltage up to 50 kV / 80kV is primarily used for onsite testing of paper-insulated mass-impregnated cables in the medium-voltage network. The high voltage is generated through a high-voltage transformer with secondary voltage-multiplier. The internal operating frequency of 20 kHz enables the smallest of device dimensions.



Features:

  • Continuous adjustable output voltage
  • The voltage measurement is done directly at the high voltage output
  • Timer of 1-30 min
  • Sensitive current measurement for recording the smallest of insulation currents with 6-time range switch, decadal
