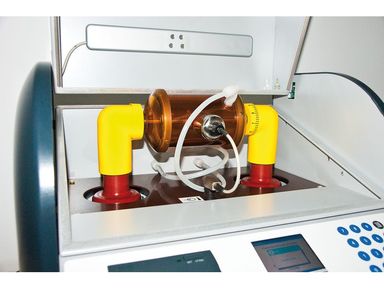

BAUR DTA IL Oil breakdown voltage tester

Cod: BAUR DTA IL




Brosura produs PDF, 0.23 Mb


Descriere

The BAUR DTA Inline is a high performance and reliable oil tester for continuous testing of the breakdown strength of insulating oils during production (inline tests). The combination of extremely short switch-off times during breakdowns and the easy oil sample handling facilitate high quality statements and conclusions on the insulating oil quality.



Features:

  • Inline insulating oil testing in oil preparation systems
  • Quality assurance during production processes
  • Improved, easy oil sample handling
  • Integration in existing production process control possible
