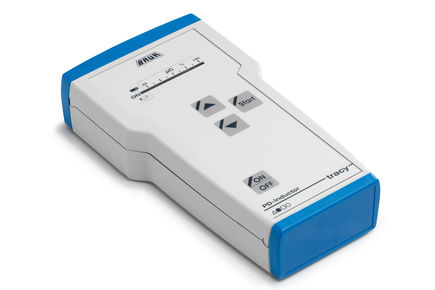

The BAUR tracy partial discharge inductor induces a signal at the apparent fault location in the cable from outside. In combination with any PD measurement system, e.g., PHG TD/PD, the induced signal can be located and compared with the result of the partial discharge pre-location. The partial discharge location can thus be determined precisely.

Features:

High-performance audio frequency transmitter up to 600 VA
Frequency of 2 or 10 kHz, quartz-stabilised (other frequencies on request)
Potential-free output
Impedance adjustment in 8 steps from 0.3 to 300 O
