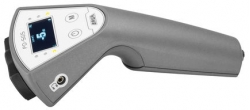

BAUR PD-SGS Handheld online PD detector

Cod: BAUR PD-SGS




Brosura produs PDF, 0.25 Mb


Descriere

The BAUR PD-SGS handheld online PD detector is used to conduct rapid initial tests for PD activities on live switchgear. Potential weak points are immediately signalled acoustically and numerically.



Features:

  • Initial rapid condition evaluation of switchgear and cable accessories during mains operation
  • Ideal for quick checks of MV and HV switchgear
  • Two integrated sensors:
    • TEV sensor records PD on the surfaces of switchgears
    • Acoustic sensor records PD inside switchgears
  • Greater safety for test personnel ½ switchgear tested for safety risks before starting work
