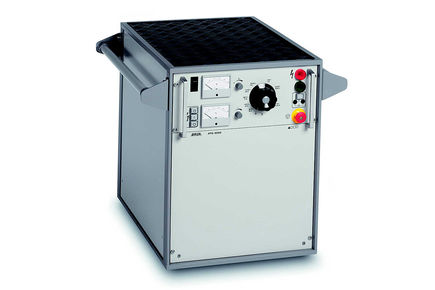

BAUR ATG 6000 Burn down transformer

Cod: BAUR ATG 6000




Brosura produs PDF, 0.21 Mb

Descriere

The high performance ATG 6000 burn down transformer is used for impedance reduction of cable faults in low- and medium-voltage networks. The short-circuit proof 5.75 kVA stray field transformer delivers a maximum voltage of 15 kV and is housed in a fully enclosed 19½ housing.



Features:

  • Proven methodes for cable faults that are difficult to locate
  • Useful for cables that are difficult to access
  • Robust construction for reliable functions
  • Independent current and voltage control on each burning level
