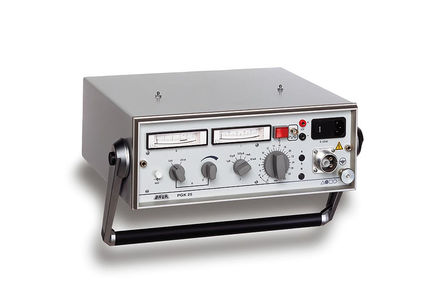

BAUR PGK 25 DC high-voltage test device

Cod: BAUR PGK 25




Brosura produs PDF, 0.29 Mb

Descriere

Cables must be tested in compliance with the national and international standards. This applies before the commissioning of new cable networks. The portable BAUR PGK 25 cable test device is used for DC voltage testing in low- and medium-voltage cables. It is characterised by its low weight of only 16.5 kg, by the easy operation and solid construction for onsite use.



Features:

  • Compact device for DC voltage testing with negative polarity
  • Continuously adjustable output voltage
  • Perfect for mobile use
