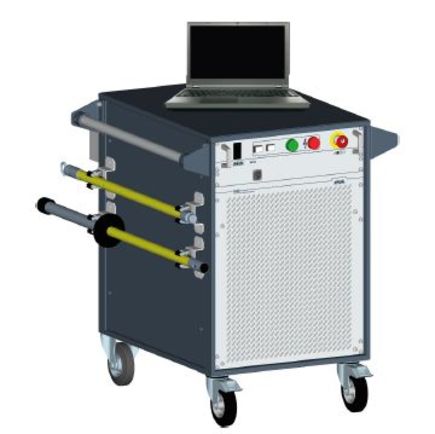

BAUR PHG 70 / PHG 80 portable VLF test system

Cod: BAUR PHG 70 / PHG 80 Portable




Brosura produs PDF, 0.31 Mb

Descriere

The BAUR PHG 70/80 portable VLF test systems are used for cable and cable sheath testing of medium-voltage cables of up to 50 kV and electrical equipment.



Features:

  • 3 voltage shapes in one device: VLF truesinus®, VLF square wave and DC voltage
  • For medium-voltage cables of up to 50 kV operating voltage
  • Cable testing, fault conditioning, cable sheath testing
