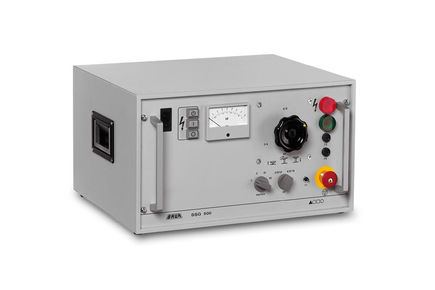

BAUR SSG 500 Surge voltage generator

Cod: BAUR SSG 500




Brosura produs PDF, 0.25 Mb

Descriere

The SSG 500 surge voltage generator is arranged in a 19'' housing. Maximum safety is achieved with the electrical safety control unit, the automatic discharge unit, the fully enclosed design and separate protection and system earth.



Features:

  • 6 output voltages up to max. 16 kV available
  • Electromagnetically actuated surge switch
  • Preselectable surge energy: 288 / 512 Ws (in all voltage ranges)
  • Automatic discharge unit
