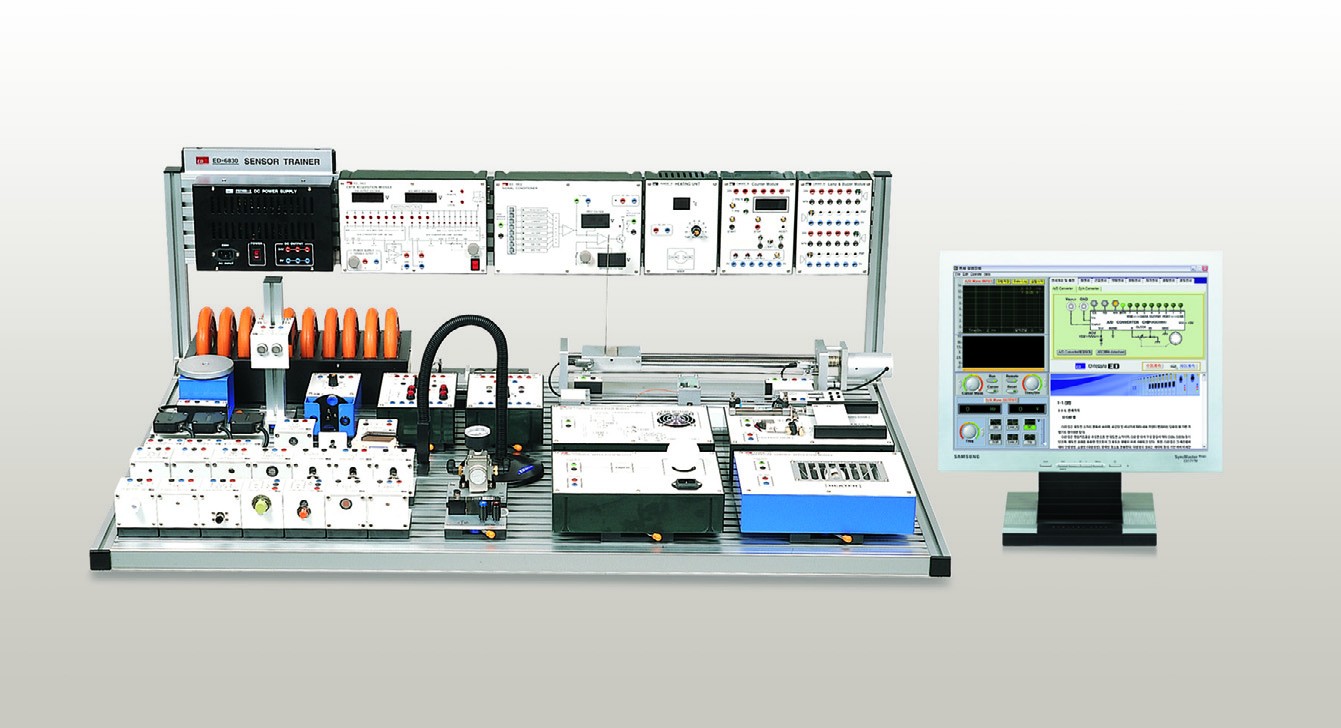

Sensor Trainer For Factory Automation ED-6830

• Rich experiments devoted to IS95 standard
• Easy-to-follow structure as main functions are itemized in modules



• Measurement of induction motor’s power efficiency
• How to use electro-dynamometer
• Torque Measurements by dynamometer
• Use of separately excited DC generator



• Modularized by each communicarion type
• PAM, PTM, PCM, DPCM, ADPCM, LDM, ADM, Delta-sigma
• No need to have additional generators (built-in power supply and signal source)
• Can display the test point and measure signals using an oscilloscope



• Panel type structure for good grasp of entire network configuration
• Learning about the functions and characteristics of basic network equipments such as NIC, HUB, Router and DSU, plus installation and maintenance
• Interlocking experiments with Internet for clear understanding a real network
• Capable of conneting to the open network on campus



• Convenient parts fixation by ‘one-touch lever’ bases and aluminum profile structure
• Efficient space utilization by mounting parts horizontally/vertically
• 64 hydraulic and electrical/electronic parts plus 20 types of optional components.
• Various hydraulic devices and components for Flexible Manufacturing System



• PC-based multi-function instrument for electricity/electronics and other experiments
• Digital Storage Oscilloscope with the 2-channel simultaneous 50MS/s sampling rate
• Spectrum Analyzer functions using Digital Storage Oscilloscope(DSO)
• Variable Power Supply(VPS), Function Generator(FG), Analog Output and Digital Output
• Analysis of collected data on PC through the modules of DSO, DMM, FC and Analog/Digital Input
• Numerical and graphical indication of the data measured and analyzed in real time



• Maximum Operating Pressure : 3Mpa(30kgf/cm2)
• Hose’s Diameter : Outside ø6/Inside ø4
• Hose’s Length : 1500mm
• Rectangular Block Type



• DC motor’s load characteristics
• DC motor’s loss and efficiency
• Alteration of the motor’s rotative directions
• Motor’s speed and torque



• Integrated sensor training system covering electricity, electronics, automation and chemistry
• Consists of 24 sensor modules, 8 application modules, 5 conversion modules, 2 signal prossing modules, 11 pneumatic components and power supply
• PC-based control for convenient, effective data collection and analysis
• Application module experiments(illumination, pneumatic auto coor, motor, temperature) for enhancing field experiences



• Convenient parts fixation by ‘one-touch lever’ bases and aluminum profile structure
• Efficient space utilization by mounting parts horizontally/vertically
• 41 transparent hydraulic and electrical/electronic parts plus various optional components.
• Various hydraulic devices and components for Flexible Manufacturing System
