PC Based Basic ED-1420

Cod: ED-1420




Brosura produs PDF, 1.8 Mb

Descriere

CONFIGURATION

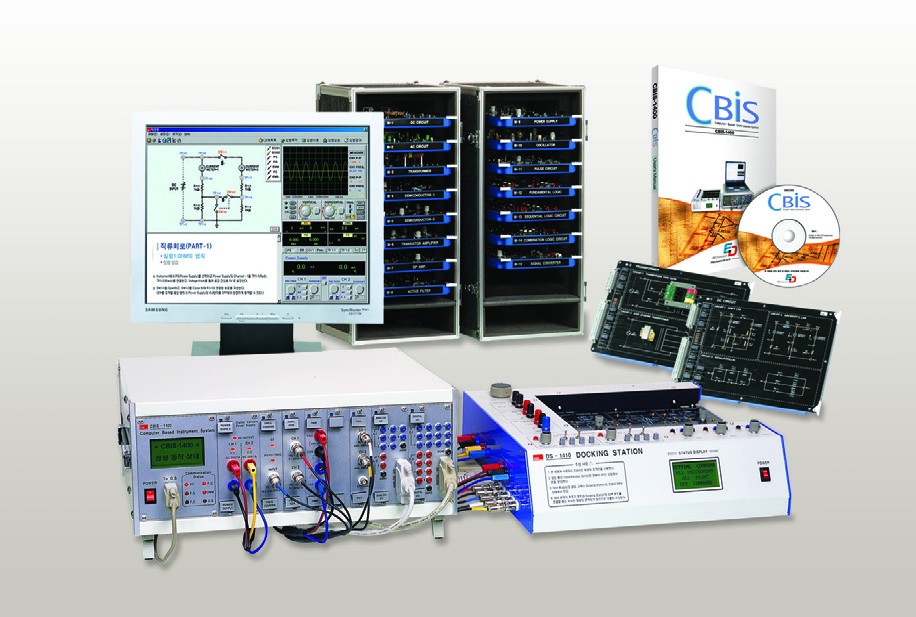

  • ED-1420 : PC Based Basic Electricity & Electronics Trainer
    • Number of Modules : 15ea
    • Module Dimension :
      • 290(W) x210(H) x  26(D)mm
    • Module Storage Box(2ea) :
      • 596(W) x 318(H) x 255(D)mm
  • Required Systems
    • DS-1410 : Docking Station(Option)
      • Please refer to DS-1410 specifications below
    • CBIS-1400 : Computer Based Instrument System(Option)
      • Please refer to page 22 on CBIS-1400 specifications
    • Computer(Option)



SPECIFICATIONS:

  • DS-1410 Docking Station
    • Display : Graphical LCD
    • Power Supply
      • Fixed Power Supply(DC 5V, ±15V, 500mA)
      • Variable AC Voltage(0~50V)
    • Variable Resistor : 3 types(1k?, 10k?, 100k?)
    • Function Generator : 2CH(10Hz~100kHz), SINE, SQUARE
    • System Board : MPU, RELAY, POWER, MUX, Graphical LCD
    • Interface : 25pin Connector x 2, RS-232, BNC, B-Jack
    • Power Source : AC220V, 50/60Hz
    • Dimension : 420(W) x 140(H) x 375(D)mm
    • Weight : 6.4kg
  • CBIS-1400 Computer-based Instrument System
    • Digital Storage Oscilloscope
    • Variable Power Supply
    • Digital Multimeter
    • Frequency Counter
    • Function Generator
    • Multi-function Card
    • Software
