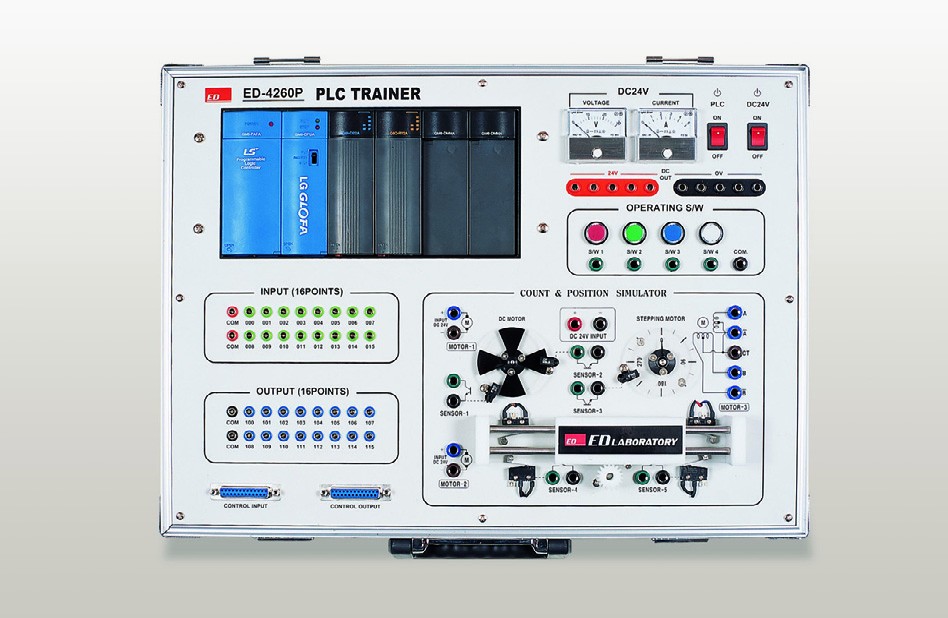

Portable PLC Trainer ED-4260P

Cod: ED-4260P




Brosura produs PDF, 0.6 Mb

Descriere

PLC

  • Control Method
    • Stored Program, Repetitive Operation, Pre-timed
  • Operation, Interrupt Operation
  • I/O Control Type : Scan synchronized batch processing
  • Program Language
    • LD(Ladder Diagram), IL(Instruction List), SFC(Sequential Function Chart)
  • Number of Commands
    • Operator : LD 13ea, IL 21ea
    • Basic Function : 194ea
    • Basic Function Block : 11ea
    • Special Function Block : Exclusive use for the special function module
    • Processing Speed : Operator 0.5µs/command

COUNTER & POSITION UNIT

  • DC Motor : 1ea
  • Stepping Motor : 1ea
  • Pinion Gear Slide Unit : 1ea
  • e-shaped Photo Sensor(built-in)
  • Position-detecting Limit Sensor for pinion slide unit(built-in)

MAIN PANEL

  • Structure
    • Aluminum carrying case type
  • Fixed Output Power Supply
    • Main : AC 220V, 3A
    • DC Power Source
      • 24V, 2A(standalone type switch mounted)
    • PLC Power Source
      • AC 220V(standalone type switch mounted)
    • Voltmeter : DC 30V
    • Voltage Indication : DCV-Meter x 1ea
    • Ammeter : 5A
    • Current Indication : DCA-Meter x 1ea
  • Input Voltage
    • AC 220V, 50/60Hz
  • Digital Input
    • Input Contact : 16 points
    • Connector for linking PLC input : 1ea
  • Digital Output
    • Output Contact : 16 points
    • Connector for linking PLC output : 1ea
  • Switch Input
    • Push Button : 4ea

Features:

  • Composed of essential devices for Programmable Logic Controller I/O commands
  • LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
  • Built-in Simulator to train on the encoder’s principle and functions
  • Stepping motor and DC motor installed as standard (forward/reverse rotation, linear movement)
  • Capable of network configuration by CPU and Remote I/C Link
