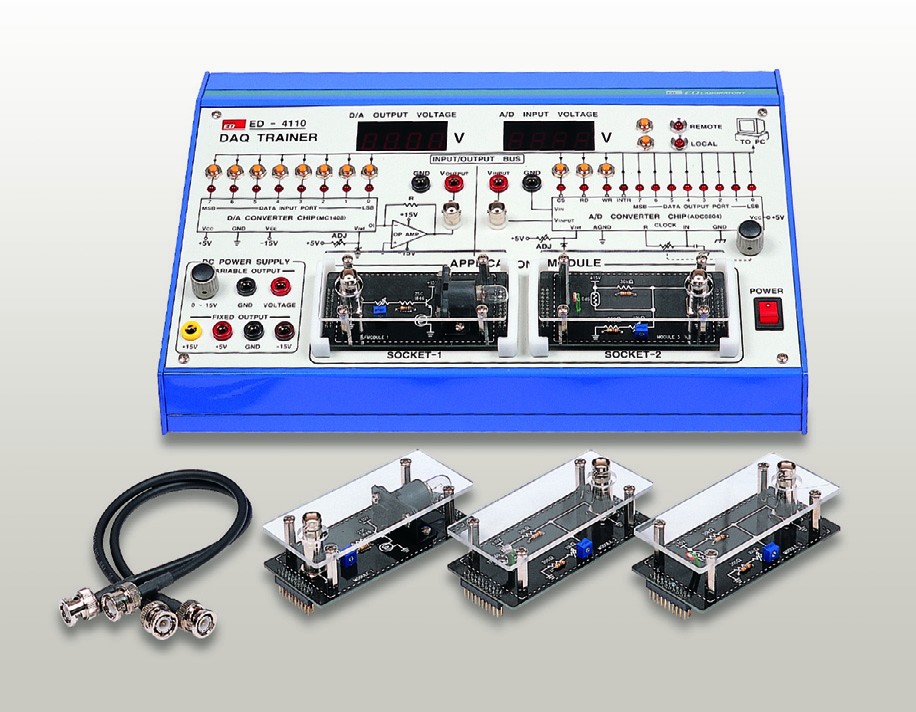

Daq(Data Acquisition) Trainer ED-4110

Cod: ED-4110




Brosura produs PDF, 0.69 Mb

Descriere

SPECIFICATIONS:



A/D CONVERTER

  • Resolution : 8bits
  • Conversion Speed : 100µs
  • Analog Input Range : 0~12.75V
  • Digital Output Level : 5V ±0.2V TTL
  • Full Scale Error : ±1 LSB
  • Display : 4 digit 7 segment



PC INTERFACE

  • MCU : T89c51RD2
  • PC Interface : RS-232C(38400 bps)



GENERAL CHARACTERISTICS

  • Input Voltage : AC 220V
  • Dimension : 346(W) x 121(H) x 219(D)mm
  • Weight : 3.7 kg



D/A CONVERTER

  • Resolution : 8bits
  • Conversion Speed : 100ns
  • Analog Output Range : 0~12.75V
  • Full Scale Error : ±1 LSB
  • D/A Chip Type : Complementary current output
  • Display : 4 Digit 7 Segment



ACCESSORIES

  • Program CD : 1ea
  • Serial Cable : 1ea
  • BNC Cable : 2ea
  • AC Power Cord : 1ea
  • Instruction Manual : 1ea



APPLICATION MODULE

  • Light Bulb’s Brightness Control(Module1)
    • Brightness control by voltage
  • Photo TR’s Light Reception(Module2)
    • Analysis of response characteristics for light
  • CdS Cell’s Light Reception(Module3)
    • Luminous intensity control
  • Module Size : 100(W) x 36(H) x 45(D)mm
  • Module Wight : 60g



OS ENVIROMENT

  • OS : Windows XP, 2000, NT 4.0
  • Hard Disk min. 50Mbyte free Space
  • Pentium-III 500MHz or higher
  • With Serial Port
  • RAM min 256MB
