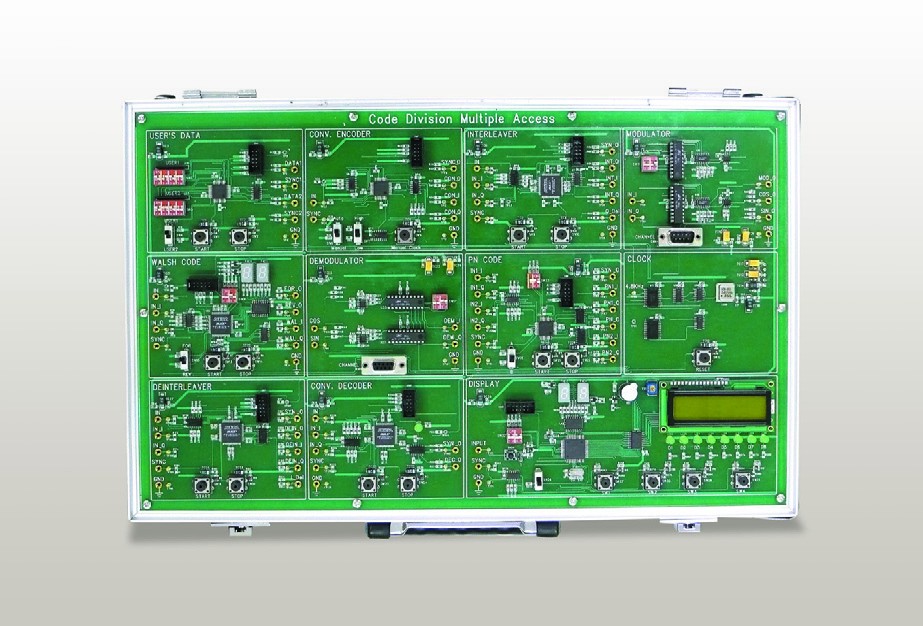

CDMA Training Kit ED-2945

Cod: ED-2945




Brosura produs PDF, 1.35 Mb

Descriere

EXPERIMENTS

  • CDMA Overview (IS95A)
  • CDMA Trainer
  • CDMA Transmitter
    • Forward Channel
      • USER’S Data
      • Convolution Encoder
      • Block Interleaver
      • PN Code
      • Walsh Code
      • Modulator
    • Forward Channel
      • PN Code
      • Walsh Code
  • CDMA Receiver
    • Demodulator
    • Block Interleaver
    • Convolution Decoder
    • Display
  • Compiler setup and programming
  • Firmware experiments
  • Overall experiments
