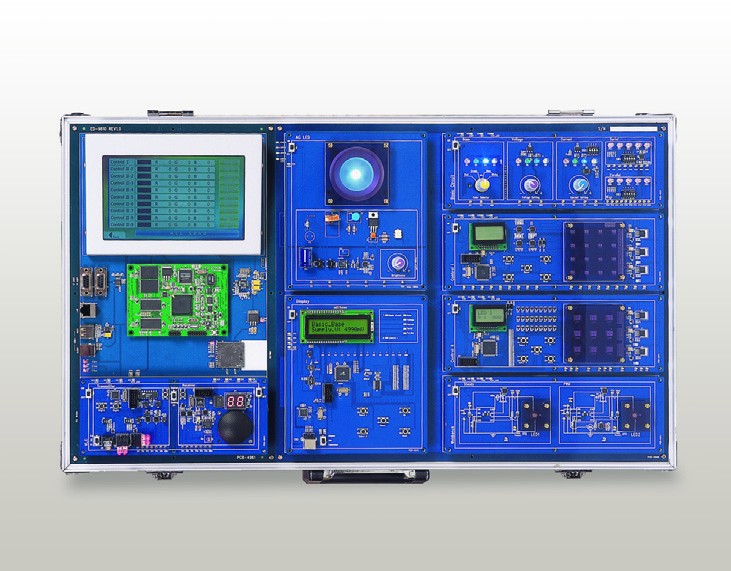

LED Lamp Trainer ED-9810

Cod: ED-9810




Brosura produs PDF, 1.24 Mb

Descriere

EXPERIMENTS

  • LED Basic operation experiment (Constant voltage, Constant current, serial connection, and parallel connection)
  • LED Brightness control, Color control, and lighting experiment
  • LED control program practice
  • Webbench Simulation
  • Experiment LED operation using AC Dimming
  • Experiment VLC(Visual Light Communication)
  • LED control using PC LabVIEW program
  • LED control using Web server
  • LED control using Embedded GU



Features:

  • Practice basic method how to operate such as basic operation, Constant voltage, Constant current, serial connection, and parallel connection
  • Brightness control, Color control, and lighting
  • Simulation for Steady/PWM
  • Brightness control for AC LED
  • Digital and analogue VLC
  • Monitoring control operation data and basic circuit data
  • Control and monitoring using PC(LabVIEW) and Embedded GUI
