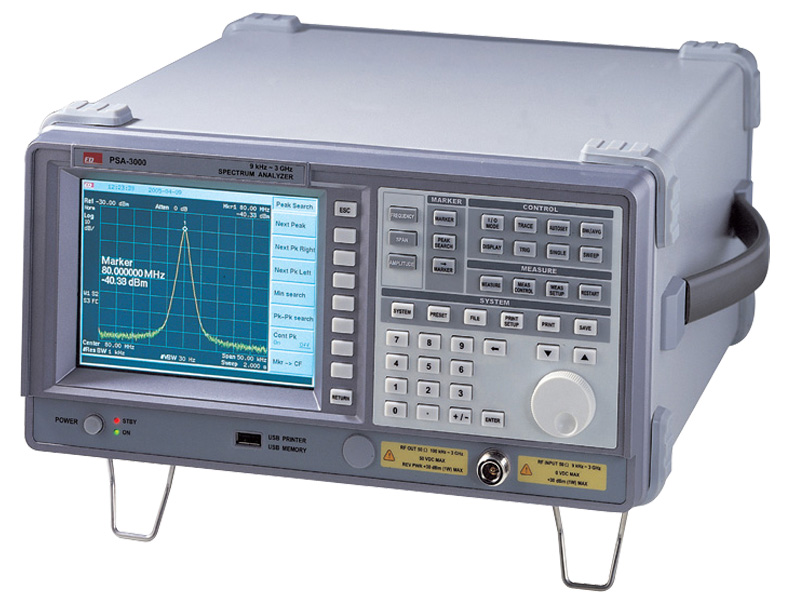

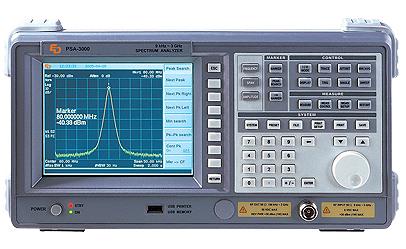

Analizor de spectru digital 9 kHz..3 GHz ED PSA-3000

• Helps understand theories on the Microstrip Line Theory and Microwave Elements Design
• Composed of 22 types of modules such as VCO using Coupler, Divider, Circulator, Attenuator and Filter
• SWR Detector, Modulation, Transmission/Reception, Detector, Self-Oscillation functions



• One-stop training kit for embedded system, DSP and FPGA
• 7" Wide TFT LCD, 10/100 Ethernet 1Port, Serial 1Port, SD/MMC, ATA and other interfaces



• Load characteristics of DC compound motor
• Cumulative compound and differential compound characteristics
• Generator’s rotating speed and output characteristics
• Loss and efficiency of DC compound generator



• Complete Motor/Generator Training System
• Various load characteristics(Resistance, L/C Reactance and Torque)
• Selectable System(ED-5100-1, ED-5100-2, ED-5100-3 or Full Set)



• Gunn Oscillator base system
• Directional Coupler & Horn Antenna
• Frequency : 9GHz~11GHz (X-Band)
• Microwave output : 15mV



• Inverse current protection
• Built-in charge controller and bulit-in battery
• Overcurrent/electric discharge protection
• 360° rotation by the direction of wind
• Configurable composite structure by adding optional



• SCR characteristics
• Rectifier and phase control
• Trigger and gate control
• Motor speed control



• Mountable 5 type of MCU(8051,PIC, Atmega128, Atmega8535, Upd78f0547)
• Practice of various communications such as RS-232 USB and Ethernet
• Practice from basic I/O exercises to sensor application exercises with 5 MCU’s
• Possible of various practice by using of Bread Board and I/O Expansion Port
• Storage of sensor data display and Excel data using UI(LabVIEW)



• Comprehension of basic production automation processes such as transfer, fabrication, classification, inspection and storage
• Convenient wiring and pipe arrangement with a label of each component such as sensors and actuators
• PLC training system function(various types of sequence actions through a change in PLC control program
• Counter/timer function and motor control by PLC or without PLC(electrical method)
• Aluminum profile worktable & control modules for easy mounting



• High-performance digital synthesizer method
• Wide Frequency Coverage : 9 kHz ~ 3.0 GHz
• Superior Resolution : Minimum 1 Hz
• Compact & Portable size
• Pre Amp as standard
• Wide Input Dynamic Range : -130 ~ 20 dBm
• Various and Convenient Interfaces : USB, LAN
