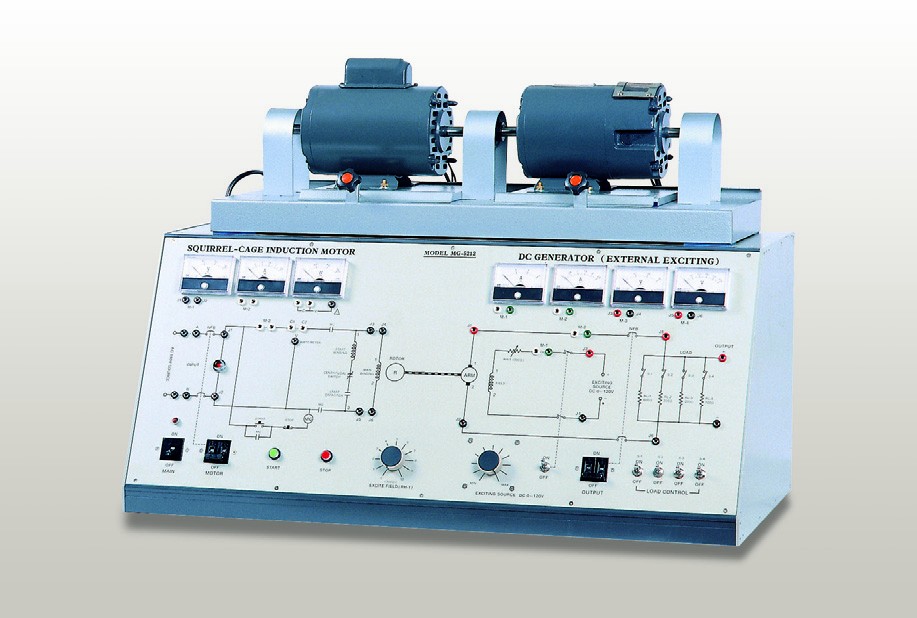

Squirrel Cage Induction Motor/ DC Generator MG-5212

Cod: MG-5212




Brosura produs PDF, 0.57 Mb

Descriere

MOTOR SECTION

  • Winding Type
  • Squirrel cage rotor
  • Split-phase stator
  • Speed : 1725 RPM
  • Input Voltage : AC 110V, 60Hz
  • Input Current : 6.6A
  • Horsepower : HP
  • Start Capacitor : 180~220µF
  • Indication Meter : 1-current, 1-voltage, 1-RPM, 1-watt
  • Over Load Trip : 7A
  • Field Excitation : Separately excited
  • Shunt Rheostat : 0~300?, 50W
  • Exciting Power : DC 0~120V, 1A
  • Indication Meter : 2-current, 2-voltage
  • Overload Trip : 2A
  • Load Resistance : 48?~480?, 500W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V, single phase
  • Rating : 30 minutes
  • Dimension of System : 990(W) x 670(H) x 475(D)mm



GENERATOR SECTION

  • Winding Type : Shunt(separately excited)
  • Speed : 1725 RPM
  • Output Power : 120V, 1A
  • Number of Poles : 4 poles



ACCESSORIES

  • Patch Cords(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea
