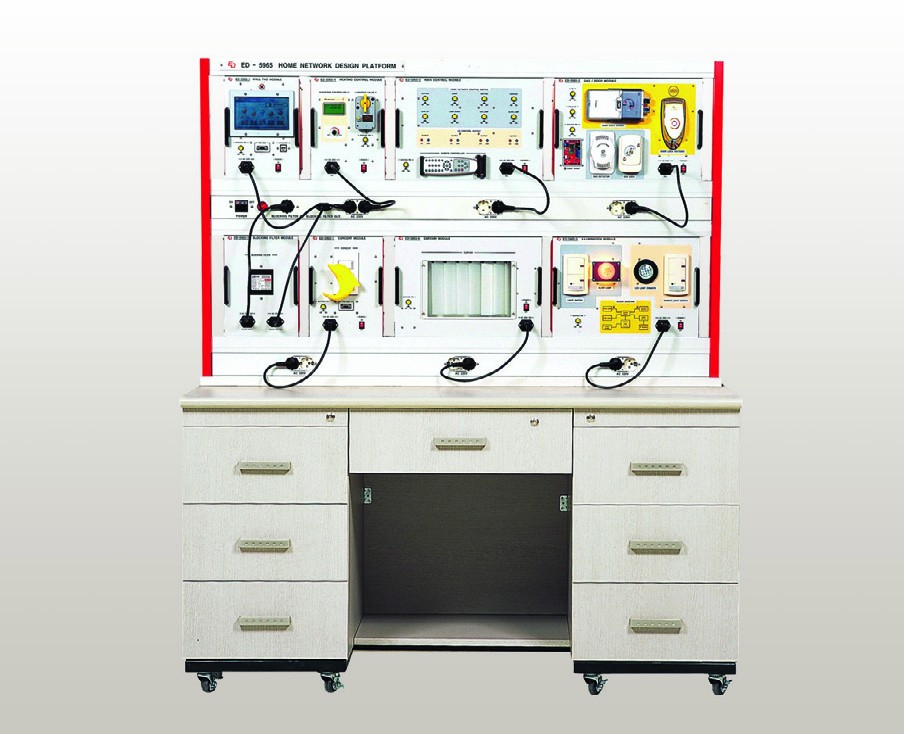

Home Network Design Platform ED-5965

Cod: ED-5965




Brosura produs PDF, 0.93 Mb

Descriere



EXPERIMENTS

  • Overview of Home Network technology
  • Principles on Home Network device related hardware and software
  • Understanding of Home Network scenarios
  • Programming for each device’s operation
  • Commissioning and network binding Using LonMaker
  • Control of each device
  • Interoperable self installation



ACCESSORIES

  • MiniEVKComiler
  • LonMaker 3.1
  • Experimental Rack
    • Single Unit Power Source Rack
    • Built-in 15A Circuit Breaker
    • Built-in Indication Lamp
    • Dimension: 1490(W) x 918(H) x 320(D)mm
  • Connection Cables
  • AC Power Cord
  • User’s Guide Manual



Experiments Module

  • ED-5965-1 Wall Pad Module
  • ED-5965-2 Heating Control Module
  • ED-5965-3 Main Control Module
  • ED-5965-4 Gas/Door Control Module
  • ED-5965-5 Blocking Filter Module
  • ED-5965-6 Electric Outlet Module
  • ED-5965-7 Blinds Control Module
  • ED-5965-8 Illumination Control / IR Module



Features:

  • Home network based experiments suitable for ubiquitous computing
  • Designed to help develop network devices on the basis of Lon Protocol
  • Control of each device installed in the field through power line communication
  • Related experiments through Neuron C and MICOM programming
  • Home network control in utilization of LabVIEW
  • Modular structure with a rack for convenient wiring
  • Home network device control through the Internet(Home Gateway)
