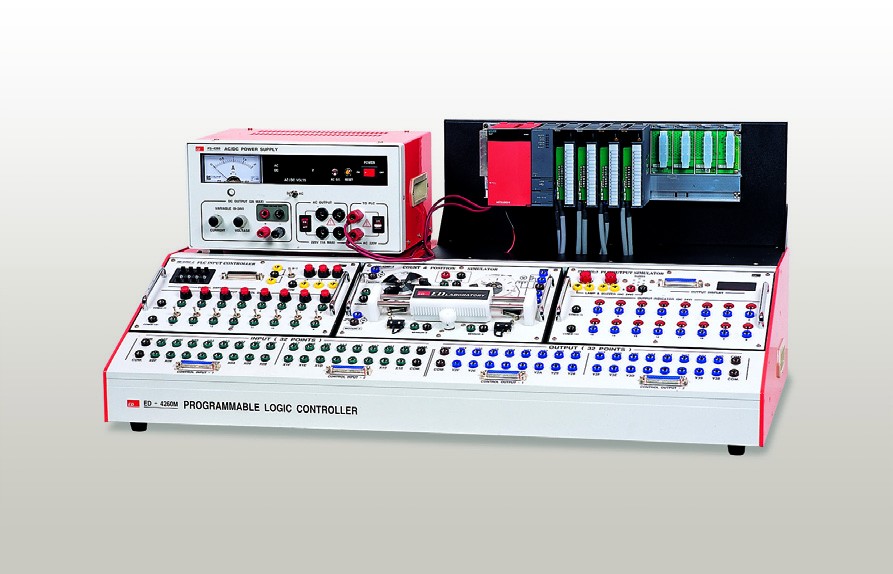

Mitsubishi MELSEC-Q Modular PLC Trainer ED-4260M

Cod: ED-4260M



Brosura produs PDF, 0.58 Mb

Descriere

MAIN FRAME

  • DC Output
    •  Voltage : 0~24V Continuously Variable
    • Current : 0~2A Continuously Variable
    • Ripple : 0.02%+2mV
    • Regulation : 0.02%+1mV
    • Voltmeter : DVM 3digits
    • Ammeter : AAM
    • DC Output Protection : Constant current protection (Fixed DC 24V)
  • AC Output
    • Voltage : 220V(Fixed type)
    • Current : 1A(Maximum)
    • Terminal : Safety connector type
    • Protection Circuit : Electronic stabilization of overcurrent (Reset function)
    • Voltmeter : DVM 3digits
  • Input/Output terminal
    • Input : 32 points(8-point COM)
    • Output : 32 points(8-point COM)
  • Module : Basic : 3ea , Option : 17ea
  • Number of Base Slots : 8ea(excluding the power unit and the CPU unit )
  • Input Voltage : AC 220V 50/60Hz
  • Dimension : 760(W) x 430(D) x 340(H)mm



PLC UNIT : MITSUBISHI MELSEC-Q

  • CPU : Q02HCPU
    • Memory Capacity : 28k
    • Device Memory : 29k
    • RAM : 32k
    • Processing Speed : 0.079µs
  • Base module : Q38B
    • Slots : 8 slots
  • Power Supply Module : Q62P
    • Input Voltage : AC 100~240V
    • Output Voltage : DC 24V/5A
    • Output Current : 3A/0.6A
  • Input Module : QX40(2ea)
    • Input 16 points (source) : DC 24V 4mA
    • Response Time : 1/5/10/20/70ms
    • 16 points 1 common : 18-point terminal
  • Output Module : QY10(2ea)
    • 16 Points : DC 24V/AC 240V 2A/1 point 8A/1 common
    • Response Time : 12ms
    • 16 points 1 common : 18-point terminal
  • GX Developer
    • MELSEC PLC Programming Software(LD, SFC, ST, FB)
    • OS : WINDOWS 9x, WINDOWS XP, WINDOWS NT
    • Network Parameter : Ethernet, Melsecnet/H, CC-LINK

ACCESSORIES

  • Connection Cord(ø4) : 1set
  • PC Cable : 1set
  • AC Power cord : 1ea
  • Program CD : 1 set
  • User Manual : 1 copy

OPTIONS

  • Electric Sequence Control Simulation Software(EDS-ESS)

Features:

  • MITSUBISHI MELSEC-Q PLC programming and execution
  • Modularization of the devices essential for PLC I/O commands
  • Experiments for basic command and various application program
  • Binary data experiments with 4digits digital switch and display unit
  • Various types of QCPU can be selected from a basic to hyper performance
