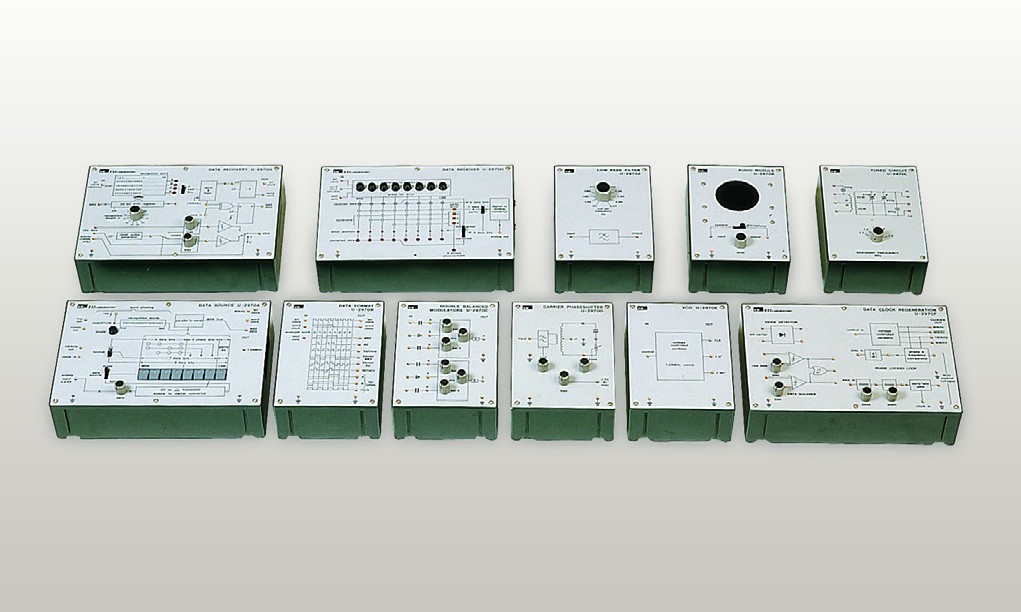

Digital Communication Trainer ED-2970

• 5 experimental modules for power electronics covering basic theory and applied experiments
• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• Integrated sensor training system covering electricity, electronics, automation and chemistry
• Consists of 24 sensor modules, 8 application modules, 5 conversion modules, 2 signal prossing modules, 11 pneumatic components and power supply
• PC-based control for convenient, effective data collection and analysis
• Application module experiments(illumination, pneumatic auto coor, motor, temperature) for enhancing field experiences



• Control of pressure, flow, level and temperature which are essential for process control
• Capable of stand-alone control and mixed combination in various types
• Real-time measurement and monitoring using data collection and signal conditioning
• Measurement of flow’s status and gain of the controlled data



• Start and load characteristics of squirrel cage induction motor
• Alteration of the rotative directions of squirrel cage Induction Motor
• Slip speed and torque of induction motor
• Induction motor’s no-load power factor and load power facto



• Hi/Lo Logic Switch
• BCD hexadecimal indication LED
• Built-in DC power supply(+5V,+9V,±15V)
• Voltage and current meter
• DC overload alarm and indication
• Variable and single pulse generator



• Composed of essential devices for Programmable Logic Controller I/O commands
• LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
• Built-in Simulator to train on the encoder’s principle and functions
• Stepping motor and DC motor installed as standard (forward/reverse rotation, linear movement)
• Capable of network configuration by CPU and Remote I/C Link



• Realistic Simulation of FM stereo broadcast
• Graphical layout of block diagrams, display elements and test points
• Covers the principles of FM stereo encoder and decoder
• Experiments on stereo amplifier (equalizer, tone control, pre-amp, etc.)



• HF band(3.5~12MHz)
• Transmitter and Receiver modules for each circuit stage
• Graphical latour of the block diagrams, plus LEDs and test points
• Covers Push-to-Talk and helps understand short wave communications



• 24 Experimental Boards in two sections : (A) Semiconductor and (B) Electronic Circuit
• Experimental Board rack and board storage cabinet



• Capable of performing Logic monitoring functions
• Graphical presentation of functional diagram on each module
• 15 modules each for TTL or CMOS IC type
