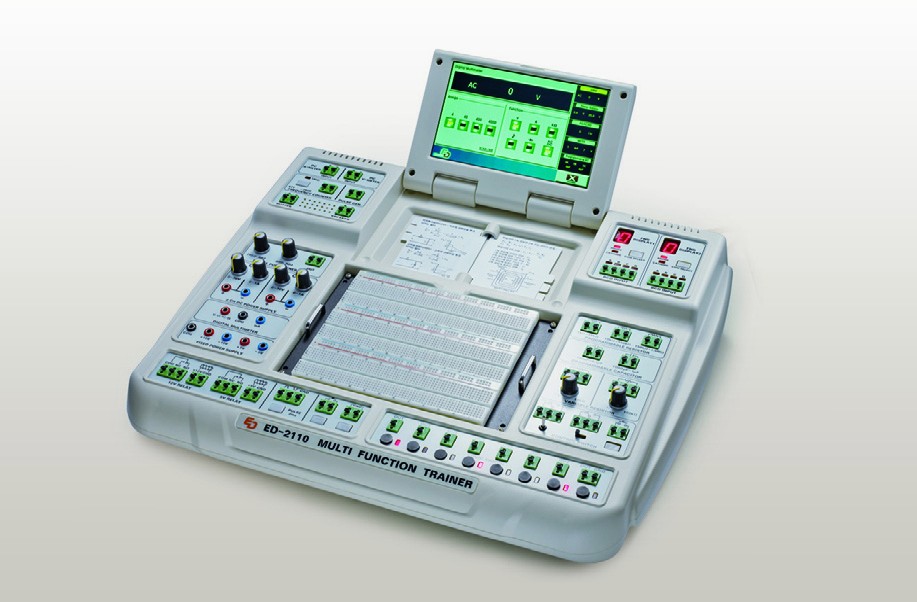

Multi Function Measuring Instrument System ED-2110

Cod: ED-2110




Brosura produs PDF, 1.22 Mb

Descriere

Features:

  • Experiment through the function generator, power supply, frequency counter, DMM and measuring resource, etc.
  • Provide the value of R&C element which user wants through programmable resister & capacitor function.
  • Circuit assembly and experiment for various fields such as electricity & electronics, medical electronics, communication, measuring control, smart-grid electric control, renewable energy and logic, etc.
  • Measuring instrument control, DATA monitoring and GUI program experiment using LabVIEW program.
  • Various experiments using 24 experimental modules and 50 experimental circuits.
  • Provide various switch, relay, FND, buzzer and speaker to use easily the circuit experiment.
  • Possible to check measuring value from LCD screen and keep safely by screen panel with tilt device.
  • Possible to control the measuring instrument using TFT LCD, set up the port, select the value of element and watch the data in real time.
