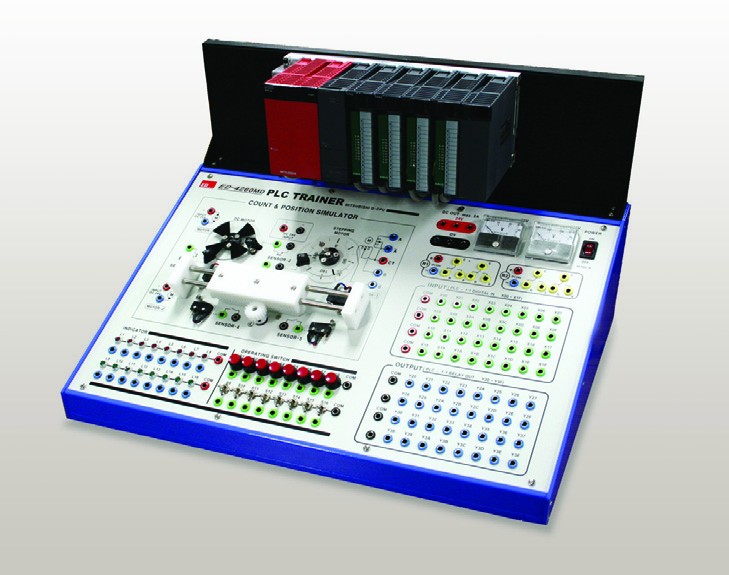

Small Desktop Type PLC Trainer ED-4260MD

• AF Generator and Frequency Counter(built-in)
• Dual DC Power Supply(5/6V, 9/12/15V)
• Decade Capacitor(2 digits) and Programmable Resistor



• Experiments on various types of special control unit
• Characteristics of Servo Motor and setup of Servo Driver
• Essential components in automation using a PLC position module
• 4mm banana jack to increase wiring capability



• MITSUBISHI MELSEC-Q PLC programming and execution
• Modularization of the devices essential for PLC I/O commands
• Experiments for basic command and various application program
• Binary data experiments with 4digits digital switch and display unit
• Various types of QCPU can be selected from a basic to hyper performance



• Integrated sensor training system covering electricity, electronics, automation and chemistry
• Consists of 24 sensor modules, 8 application modules, 5 conversion modules, 2 signal prossing modules, 11 pneumatic components and power supply
• PC-based control for convenient, effective data collection and analysis
• Application module experiments(illumination, pneumatic auto coor, motor, temperature) for enhancing field experiences



• Mountable 5 type of MCU(8051,PIC, Atmega128, Atmega8535, Upd78f0547)
• Practice of various communications such as RS-232 USB and Ethernet
• Practice from basic I/O exercises to sensor application exercises with 5 MCU’s
• Possible of various practice by using of Bread Board and I/O Expansion Port
• Storage of sensor data display and Excel data using UI(LabVIEW)



• 5 experimental modules for power electronics covering basic theory and applied experiments
• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• Maximum Operating Pressure : 3Mpa(30kgf/cm2)
• Hose’s Diameter : Outside ø6/Inside ø4
• Hose’s Length : 1500mm
• Rectangular Block Type



• Comprehension of basic production automation processes such as transfer, fabrication, classification, inspection and storage
• Convenient wiring and pipe arrangement with a label of each component such as sensors and actuators
• PLC training system function(various types of sequence actions through a change in PLC control program
• Counter/timer function and motor control by PLC or without PLC(electrical method)
• Aluminum profile worktable & control modules for easy mounting



• Consists of one gripper and 5-axis vertical multi joints
• Absolute-type RVDT Position Sensor applied to each axis and requires no Limit switch
• High performance CPU enables real-time control of each axis
• PID gain tuning and real-time control



• Interlocking system package with CBIS-1400 and DS-1410 Models (Options)
• Experiments on a measurable low frequency bandwidth
• Realistic experiments on modulation and demodulation
• Verification of the output waveform on PC engaged with CBIS-1400 Model
