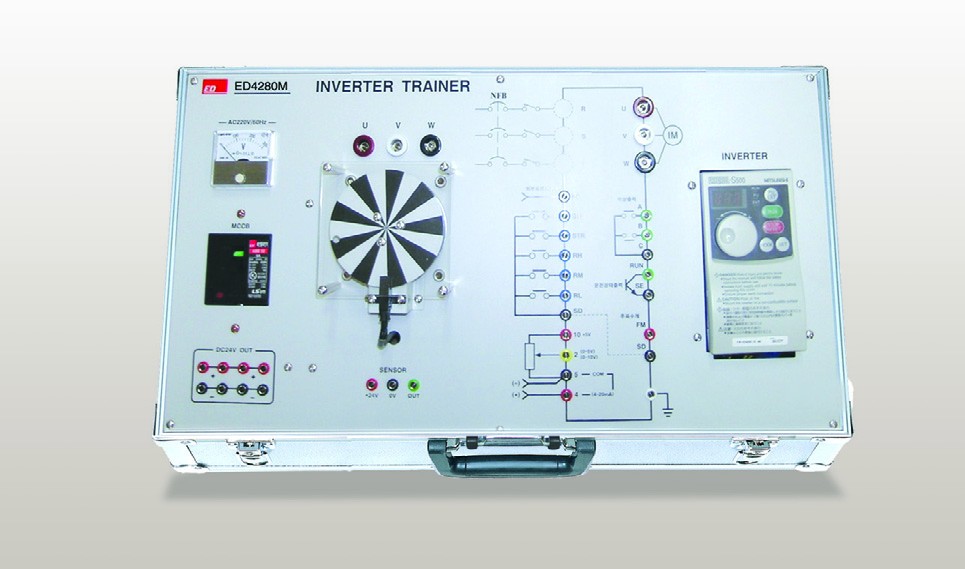

Inverter Trainer ED-4280M

Cod: ED-4280M




Brosura produs PDF, 0.51 Mb

Descriere

EXPERIMENTS

  • Definition of Inverter
  • Inverter menu setup
  • Preparation of the Inverter before operation
  • Connection to the AC Motor
  • Torque operation
  • Acceleration and deceleration
  • Forward/Reverse operation
  • Frequency operation

SPECIFICATIONS

INVERTER

  • Control Method : Soft-PWM
  • Output Frequency : 0.2~400Hz
  • Voltage/Frequency : Baseband 0~400Hz
  • Starting Torque : 150%(at 1Hz), 200%(at 3Hz)
  • Torque Boost : 0~30% configurable
  • Capacity(kW) : 0.4(25W)
  • Input Voltage : 1-phase AC 200V~240V 50/60Hz

AC MOTOR

  • Pole : 3-phase
  • Capacity : 25W
  • Voltage : 220V
  • Hertz : 50/60Hz
  • Speed : 1200RPM

MAIN PANEL

  • Power : AC220V
  • Power Supply
    • Free Voltage 50/60Hz
    • Short Circuit Protection(Built-in)
    • Built-in NBF
  • Circuit Diagram : Displays on the surface of panel
  • Circuit Protection : Power Circuit Breaker /Switch
  • Photo Sensor
    • Detects speed deceleration
    • DC24V
  • Rotary Encoder : 80mm
  • Protective Cover : Transparent acryl
  • Terminal : DC 4mm terminal, AC protective terminal
  • Case : Aluminum hard case, upholstery EGI 1.2t

ACCESSORIES

  • AC Power Cord : 1ea
  • Connection Cable : 1set
  • User Manual : 1ea

Features:

  • Aluminum hard case structure for mobility
  • Applied experiments on the motor’s rotation characteristics
  • AC motor control technology using the inverter
  • Interlocking experiments with Programmable Logic Controller
