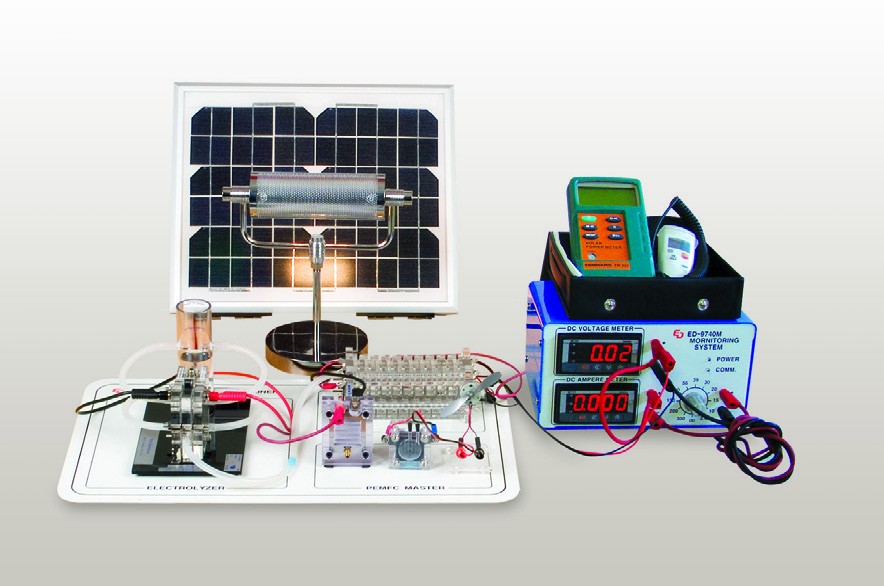

Fuel Cell Trainer ED-9740

Cod: ED-9740




Brosura produs PDF, 0.66 Mb

Descriere

EXPERIMENTS

  • Experiment on Photovoltaic Generation
    • Solar cell generation experiment according to luminance
    • Solar cell generation experiment according to angle
    • Experiment on characteristic curve solar cell IV
    • Experiment (Motor, Lamp, Registor) according to solar cell Load
  • Experiment on Fuel Cell Generation
    • Understand the conception and principal of fuel cell generation
    • Hydrogen electrical dissolution experiment
    • Experiment the principal for Hydrogen Generation
    • Experiment characteristic Load of PEMFC Cell (Motor, Lamp, Registor)
    • Experiment characteristic Load of PEMFC Stack (Motor, Lamp, Registor)
    • Experiment changed power which is created from each of cell
    • PEMFC cell serial and parallel experiment
    • Experiment on characteristic curve IV of PEMFC Stack
    • Experiment on disassembly and assembly of PEMFC Cell



SPECIFICATIONS

  • Solar Cell
    • Max Operation Power : 10W
    • Open Voltage : 21.8V
    • Short Current : 0.64A
    • Operation Voltage : 17.6V
    • Operation Current : 0.64A
    • Size : 310(W) x 18(H) x 368(D)mm
    • Weight : 1.5kg
  • Halogen Lamp
    • Power 220V/300W
  • Dimmer
    • Using Voltage : AC220V
    • Rated Capacity : 1kW
    • Noise Terminals Voltage : below 7dB 45MHz~30MHz
    • T Shape Dimension : 80(W) x 60(H) x 120(D)mm
  • H2/Air Electrolyzer
    • Power : 15W at 4DC
    • Allowable Voltage : 3.0~4.0V DC
    • Allowable Current : 0~4.0A DC
    • Electrolyzer Area : 16cm 2
    • Dimension : 180(W) x 140(H) x 120(D)mm
    • Weight : 460g
  • H2/Air PEMFC Stack(Fuel Cell x 10)
    • Power : 200mW per cell
    • Power(10cells) : 2W
    • Dimension : 175(W) x 60(H) x 70(D)mm
    • Electrode area : 4cm per cell
    • Fuel : H2/Air
    • Weight : 430g
    • Generated Voltage : 0.4~0.96 per cell 2
  • PEM Fuel Cell Master KIT
    • Power : 0.3~0.4W
    • Size : 30 x 30mm
    • Fuel : H2/Air
  • Motor Pan(Load)
    • Operating Range : 1~6V
    • Nominal : 3.0V
    • No Load Speed : 3100rpm
    • Dimension : 60(W) x 140(H) x 40(D)mm
    • Weight : 45g
  • LED Lamp(Load)
    • LED Lamp(Load)Power : 0.8W
    • Allowable Voltage : 5V
    • Allowable Current : 0.15A
    • LED : Per 15mA(8ea)
    • Dimension : 60(W) x 140(H) x 40(D)mm
  • Monitoring system Adjust Resistor
    • Allowable Voltage : DC 0V~30V
    • Allowable Current : 10~50W, 1A~5A
    • Load Type : Analog Type
    • Load Error : ± 1.2%
    • Variable Resistance : 3.4~300?
  • Electric Voltage /Ampere Meter
    • Power Voltage : AC 100~240 50/60Hz
    • Power Consumption : 5VA
    • Max Range : -1999~9999
    • RS-485 Comm Output : 1200/2400/4800/9600bps
    • Protocol : Modbus
    • Communication Method : Half-DUP Lex
  • Communication with PC : USB
