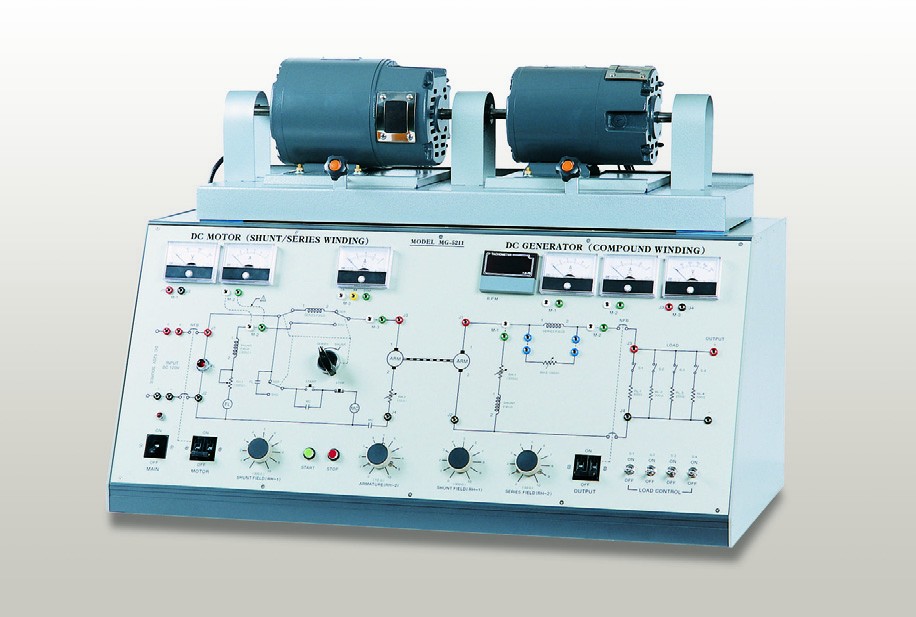

DC Motor/ Generator MG-5211

Cod: MG-5211




Brosura produs PDF, 0.56 Mb

Descriere

MOTOR SECTION

  • Winding Type : Shunt/Series
  • Speed : 1250~1800 RPM
  • Input Voltage : 0~120V, 3.5A
  • Shunt Field Excitation : 0.4A(Sep.), 120V
  • Number of poles : 2 poles
  • Horsepower : 1/3 HP
  • Shunt Field Rheostat : 0~300?, 50W
  • Armature Rheostat : 0~10?, 80W
  • Indication Meter : 2-current, 1-voltage, 1-RPM(digital)
  • Overload Trip : 4A
  • Series Field Rheostat : 0~50?, 50W
  • Indication Meter : 2-current, 1-voltage
  • Overload Trip : 2A
  • Load Resistance : 48?~480?, 500W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V. single phase
  • Rating : 30 minutes
  • Dimension of system : 990(W) x 670(H) x 475(D)mm
  • Weight : 75kg



ACCESSORIES

  • Patch Cords(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea



GENERATOR SECTION

  • Winding Type : Compound
  • Speed : 1800 RPM
  • Output power : DC 0~120V, 1A
  • Number of  poles : 2 poles
  • Field Excitation : Self excited
  • Shunt Field Rheostat : 0~300?, 50W
