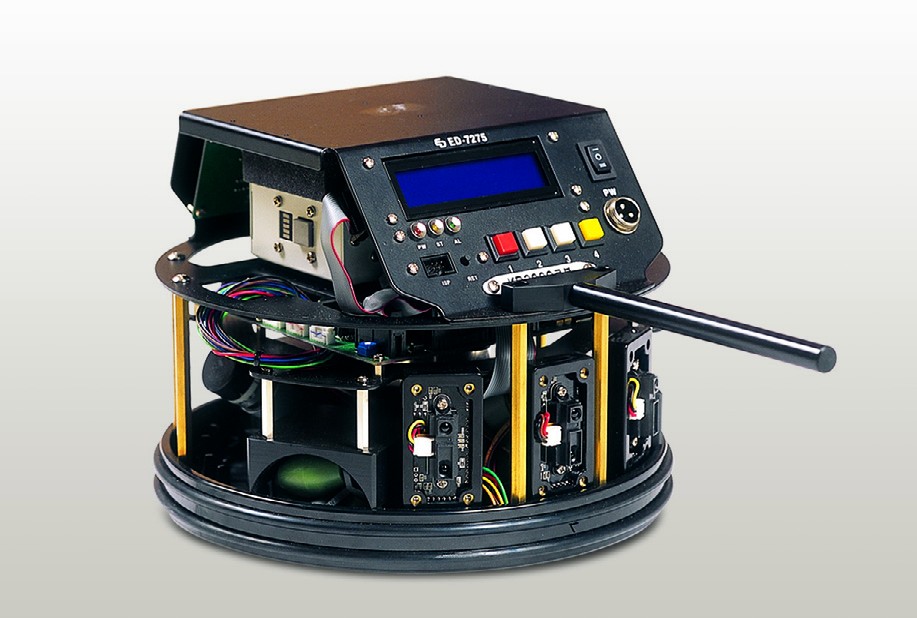

Omni-Directional Mobile Robot ED-7275

Cod: ED-7275




Brosura produs PDF, 0.86 Mb

Descriere

Features:

  • Covers overall basic experiments for the mobile robot using a floor detecting sensor and a front area detecting distance sensor
  • Offers basic-to-advanced training curriculum on the control of robot using embedded MICOM, 3-axis motor, IR sensor, PSD sensor and Omni-directional wheel
  • Uniquely designed mechanism that has employed Omnidirectional wheel with the interval in 120o for allowing dynamic movement in all directions
  • Five IR sensors mounted to detect a specific color and send the data to Host CPU using interrupt
  • Three PSD sensor mounted as basic shipped components, and capable of combining and mounting additional PSD sensor(2ea), human body detection sensor(1ea) and so on
  • Provides related library source to help control the robot using
  • Application program(C language)
  • Comes with user manual covering various types of sensor adopted for the intelligent robot
  • Four buttons for controlling the robot's hardware and LCD for viewing its status easily
  • Downloadable through USB AVR ISP terminal
  • Smart battery system that allows to check the battery life
