Power Electronics Trainer ED-2040

Cod: ED-2040




Brosura produs PDF, 1.17 Mb

Descriere

SPECIFICATIONS

  • SCR : GATE DRIVER IC
  • IGBT : GATE DRIVER IC
  • DIODE : 600V 10A
  • IGBT : 1000V 25A
  • SCR : 1000V 10A
  • Input Voltage
    • AC 220V(single-phase) 60Hz
    • AC 380V(3-phase) 60Hz
  • Module Size : 250(W) x 65(H) x 166(D)mm
  • Rack(Option) : 1800(W) x 780(H) x 400(D)mm

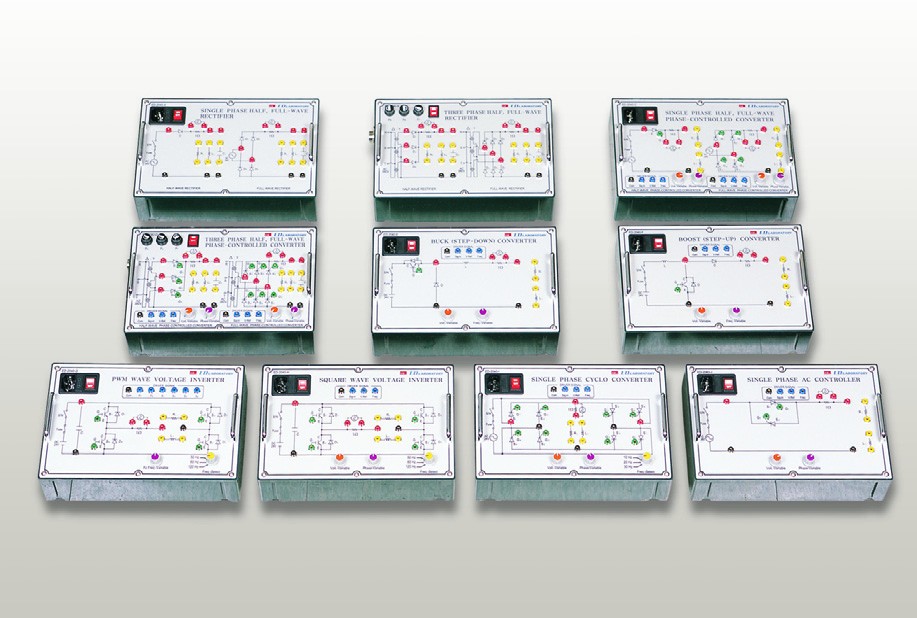

Experimental Modules:

  • ED-2040-A
  • ED-2040-B
  • ED-2040-C
  • ED-2040-D
  • ED-2040-E
  • ED-2040-F
  • ED-2040-G
  • ED-2040-H
  • ED-2040-I
  • ED-2040-J
