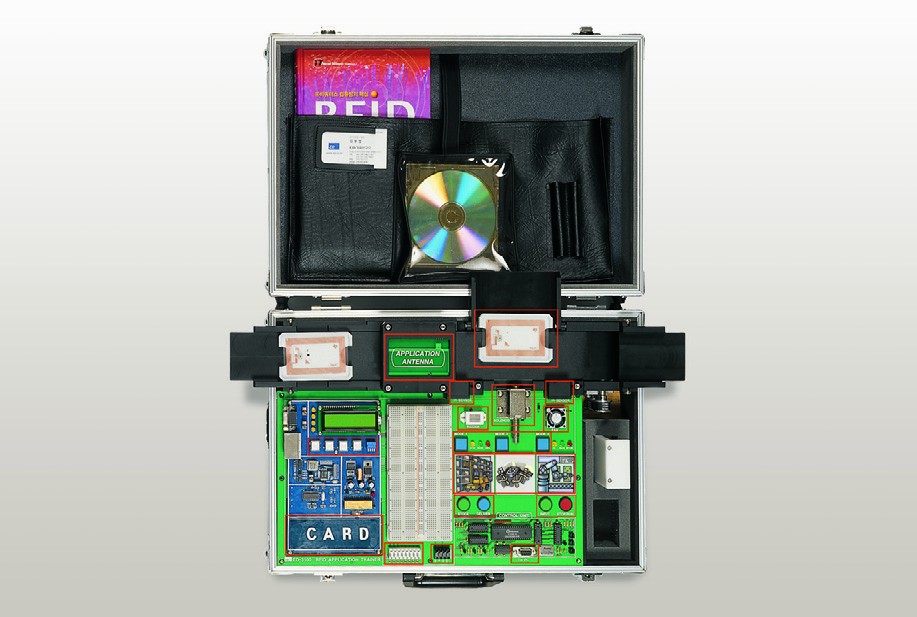

RFID Application Trainer ED-3100

Cod: ED-3100




Brosura produs PDF, 0.9 Mb

Descriere

CONFIGURATION

  • ED-1450 : PC Based RFID Trainer
    • Number of Modules : 2ea
    • Module Dimension : 290(W) x 210(H) x 26(D)mm
  • Required System
    • DS-1410 : Docking Station(Option)
      • Please refer to page 24 on DS-1410 specifications
    • CBIS-1400 : Computer Based Instrument System(Option)
      • Please refer to page 22 on CBIS-1400 specifications
    • Computer(Option)





Features:

  • F/W program practices for RFID Reader
  • Various types of test point for Air-interface experiments
  • Anti-collision function
  • OCX Library useful for application engineers
  • 13.56MHz I-CODE Type in common usage
  • Capability of reading and writing data on Tag
  • Mini-Plant interlocked with conveyor(management of warehouse, process, parking lot, etc.)
  • Application modules for easy mounting and demounting (Management of dntrance & exit, logistics, vending machine, etc.)



TOPICS COVERED

  • Development Environment(AVR, JTAG, Compiler)
  • ED-3100 Configuration and Operation
  • AVR Device through sample exercises
  • I-CODE1 Label IC
  • SLRC400 Reader IC
  • OCX(Examples)
  • Unselceted Commands
  • Anti-collision and Selected Commands
  • Write, Selected, Addressed Commands
  • Other Commands(Selected read, Halt, EAS/Quiet)
