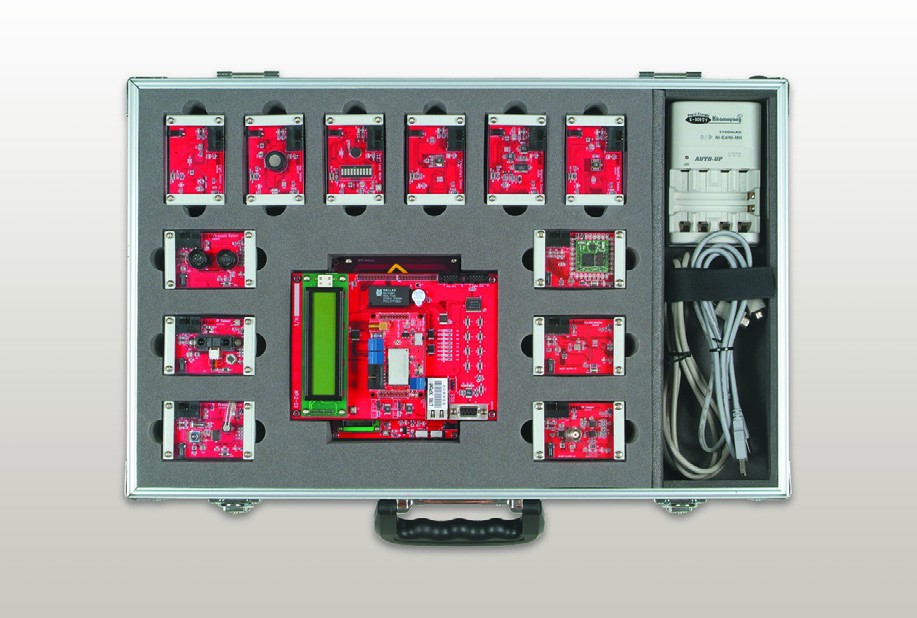

Ubiquitous Sensor Network Trainer ED-3160

• Mountable 5pieces MCU(8051,PIC, ATmega128, ATmega8535, upd78F0547)
• Practice of various communications such as RS-232 USB and Ethernet
• SoC experiments using the default FPGA (EP1C4F324)
• Storage of sensor data display and excel data using UI(LabVIEW)



• Helps understand theories on the Microstrip Line Theory and Microwave Elements Design
• Composed of 22 types of modules such as VCO using Coupler, Divider, Circulator, Attenuator and Filter
• SWR Detector, Modulation, Transmission/Reception, Detector, Self-Oscillation functions



• Control of pressure, flow, level and temperature which are essential for process control
• Capable of stand-alone control and mixed combination in various types
• Real-time measurement and monitoring using data collection and signal conditioning
• Measurement of flow’s status and gain of the controlled data



• Comprehension of basic production automation processes such as transfer, fabrication, classification, inspection and storage
• Convenient wiring and pipe arrangement with a label of each component such as sensors and actuators
• PLC training system function(various types of sequence actions through a change in PLC control program
• Counter/timer function and motor control by PLC or without PLC(electrical method)
• Aluminum profile worktable & control modules for easy mounting



• 5 experimental modules for power electronics covering basic theory and applied experiments
• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• The optional Embedded System(ED-255EK) can be linked as a gateway
• ZigBee network can be built using TinyOS, F8WOS
• Capable of control and monitor through Ethernet
• The RFID Card Reader is supplied as a standard shipped component for applied experiments on security, home automation and robot



• SIMATIC STEP7-300 PLC programming and execution
• Modularization of the devices dssential for PLC I/O commands
• Experiments for basic command and various application program
• Binary data experiments with 4digits digital switch and display unit
• Customizable for various types of STEP7-300 series CPU



• Panel type structure for good grasp of entire network configuration
• Learning about the functions and characteristics of basic network equipments such as NIC, HUB, Router and DSU, plus installation and maintenance
• Interlocking experiments with Internet for clear understanding a real network
• Capable of conneting to the open network on campus



• 7 experimental modules with a mainframe console
• Harmonic Analysis and Superheterodyne Receiver experiments
• PCM(TDM), Sample Hold, and Delta Modulation experiments



• Fuel cell generation using photovoltaic
• Complete disassembly and assembly of the fuel cell
• Current and voltage measurement for PEM Fuel Cell Stack according to each of Cell
• Power production experiment using PEM Fuel cell
