Flexible Manufacturing System ED-FMS1

Cod: ED-FMS1




Brosura produs PDF, 1.07 Mb

Descriere

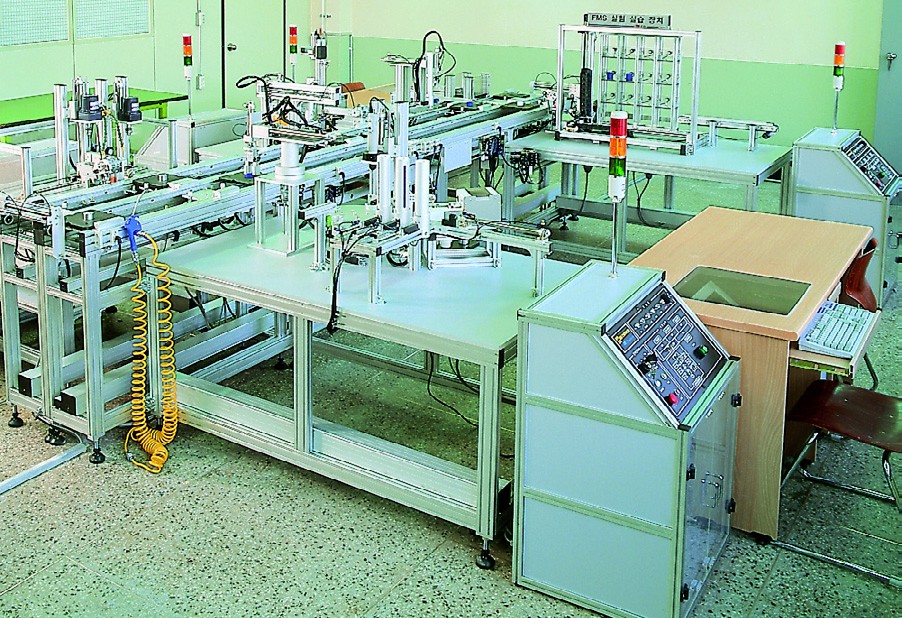

SYSTEM CONFIGURATION

  • Supply Process
    • Pallet supplier (size of pallet : 200(W) x 10(H) x 200(D)mm
    • PTP robot(place to place robot)
    • Material supplier and magazine
  • Inspection Process
    • Dimension measuring meter(measuring the thickness)
    • Load’g/unload’g rotative cylinder
    • Small conveyor
    • Loadless cylinder(load’s device) and gripper
    • 2nd material supplier and magazine
  • Processing Process
    • 180° rotative arm cylinder
    • Gripping device
    • Drilling processor
    • Device of eliminating the chip
    • Tap processor
    • Transmitting slide
    • Classifying and assembling process
    • 180° rotative arm cylinder
    • 4 dividing indexing table
    • Separator
    • Rotative cylinder, parts supplier and magazine(3set)
    • Screw Fastener and Screw Supplier
  • Storing Process
    • Rotative cylinder(Vacuum type)
    • Automatic warehouse loader
    • Storing cell(3 x 4)
    • Conveyor for releasing the finished products
    • Main Conveyor
