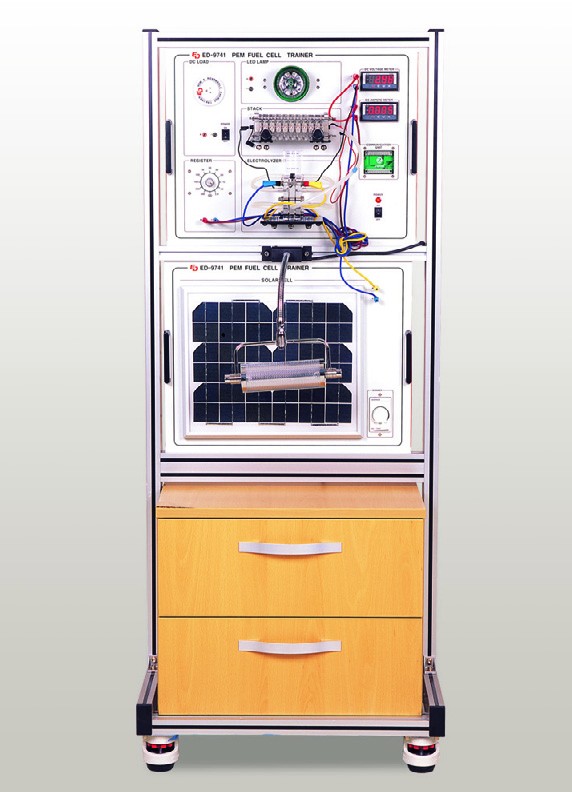

Fuel Cell Trainer ED-9741

Cod: ED-9741




Brosura produs PDF, 0.6 Mb

Descriere

EXPERIMENTS

  • Experiment on Photovoltaic Generation
    • Solar cell generation experiment according to luminance
    • Solar cell generation experiment according to angle
    • Experiment on characteristic curve solar cell IV
    • Experiment (Motor, Lamp, Registor) according to solar cell load
  • Experiment on Fuel Cell Generation
    • Understand the conception and principal of fuel cell generation
    • Hydrogen electrical dissolution experiment
    • Experiment the principal for Hydrogen Generation
    • Experiment characteristic Load of PEMFC Cell (Motor, Lamp, Registor)
    • Experiment characteristic Load of PEMFC Stack (Motor, Lamp, Registor)
    • Experiment changed power which is created from each of cell
    • PEMFC cell serial and parallel experiment
    • Experiment on characteristic curve IV of PEMFC Stack
    • Experiment on disassembly and assembly of PEMFC Cell



Features:

  • Understand the conception and principal of fuel cell generation
  • Experiment on various types of load
  • PEMFC(Hydrogen) generation experiment
  • Testing of load for maximum four fuel cell at the same time
  • Removable type of electrical dissolution and fuel cell from main body
  • Monitoring through LabVIEW program
  • Fuel cell generation using photovoltaic
  • Complete disassembly and assembly of the fuel cell
  • Current and voltage measurement for PEM Fuel Cell Stack according to each of Cell
  • Power production experiment using PEM Fuel cell
  • Modularized of the processes covering electrical dissolution of water and drive of fuel cell
