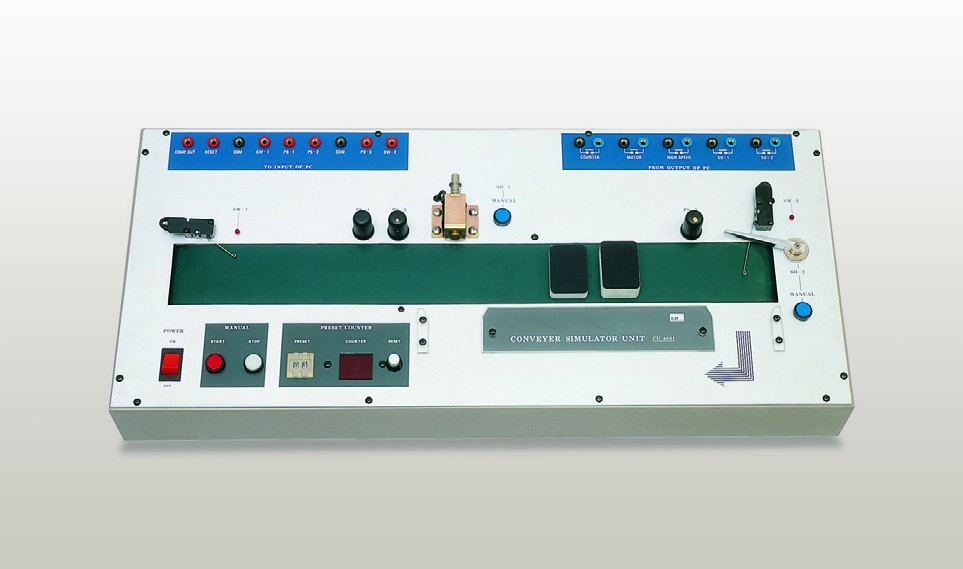

Conveyor Control Simulation Unit CU-4001

Cod: ED CU-4001




Brosura produs PDF, 0.48 Mb

Descriere

SPECIFICATIONS

  • Conveyor Belt Size : 60(W) x 570(L)mm
  • Movable Speed
    • High : 18mm/sec
    • Low : 12mm/sec
  • Object of Conveyance : Reflective Photo Sensor x 3ea
  • Motor Rpm : 4 RPM(Deceleration Gear)
  • Condition Rejector : 2 Position
  • Operating Mode : Manual and Auto by PLC
  • Presentable Compare : 2 Digits Count(0~99 Preset Count)
  • Control I/O : 13 Points
  • Experiment Programs : 12 Circuits
  • Input Power : AC 220V, 50/60Hz
  • Dimensions : 680(W) x 130(H) x 310(D)mm
  • Weight : 11kg



ACCESSORIES

  • Connection Cord(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Moving Object(For Training) : 2ea
  • Dust Cover : 1ea
  • Experimental Manual : 1ea



OPTIONS

  • PLC : ED-4260 Series or PC-7850 model
  • Simulation Software Programmable Logic Controller
  • (EDS-SimPL)
