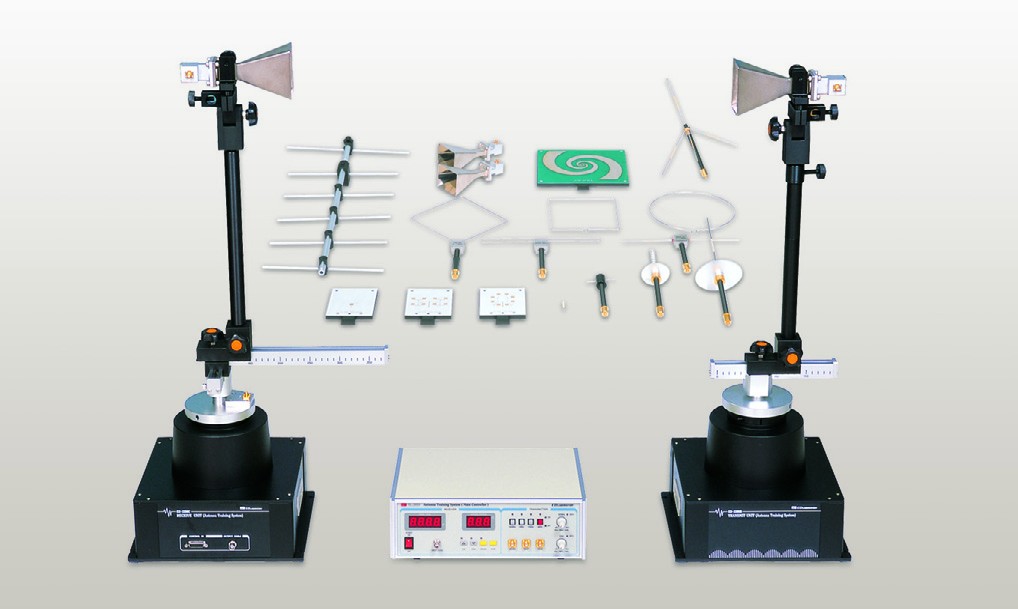

Antenna Trainer ED-3200

• The Electronic Manual operable on PC comes with ED-1440 and e-learning is optimized by remote control of student’s operating program and evaluation of student’s online peport in real time.
• Through DS-1410, it provides Variable Power Supply(VPS), Function Generator(FG), Analog Output, Digital Output needed for experiments.



• 5 experimental modules for power electronics covering basic theory and applied experiments
• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• Study of functions, characteristics, installation, repair and maintenance of basic ADSL components such as Telephone Exchange, Splitter, DSLAM, ADSL Modem, HUB and LAN Card
• Network structure through interworking experiments with Internet and capability of Internet usage and simple programming
• Capable of interworking experiments with ED-NET-3(LAN Training System)



• 10 experimental modules with a mainframe console
• Basic concepts on the communication systems
• Experiments on the broadcast frequency band tuning
• Generation of AM and FM waves and detection theory



• Designed to help develop network devices on the basis of Lon Protocol
• Control of each device installed in the field through power line communication
• Related experiments through Neuron C and MICOM programming
• Home network control in utilization of LabVIEW



• Experiments on Servo Motor control techniques using Servo Driver
• Aluminum carrying case for convenient storage and mobility
• JOG operation, PLC control operation, PC control operation
• Various types of control elements easily to be mounted
• Capable of checking normal operating voltage / over current by voltmeter and ammeter



• Interlocking system package with CBIS-1400 and DS-1410 Models (Options)
• Experiments on a measurable low frequency bandwidth
• Realistic experiments on modulation and demodulation
• Verification of the output waveform on PC engaged with CBIS-1400 Model



• Helps understand theories on the Microstrip Line Theory and Microwave Elements Design
• Composed of 22 types of modules such as VCO using Coupler, Divider, Circulator, Attenuator and Filter
• SWR Detector, Modulation, Transmission/Reception, Detector, Self-Oscillation functions



• Panel type structure for good grasp of entire network configuration
• Learning about the functions and characteristics of basic network equipments such as NIC, HUB, Router and DSU, plus installation and maintenance
• Interlocking experiments with Internet for clear understanding a real network
• Capable of conneting to the open network on campus



• OP-Amp. characteristics and various appplication circuits
• Main Frame contains DC Power Supply, AF Signal and Frequency Counter
