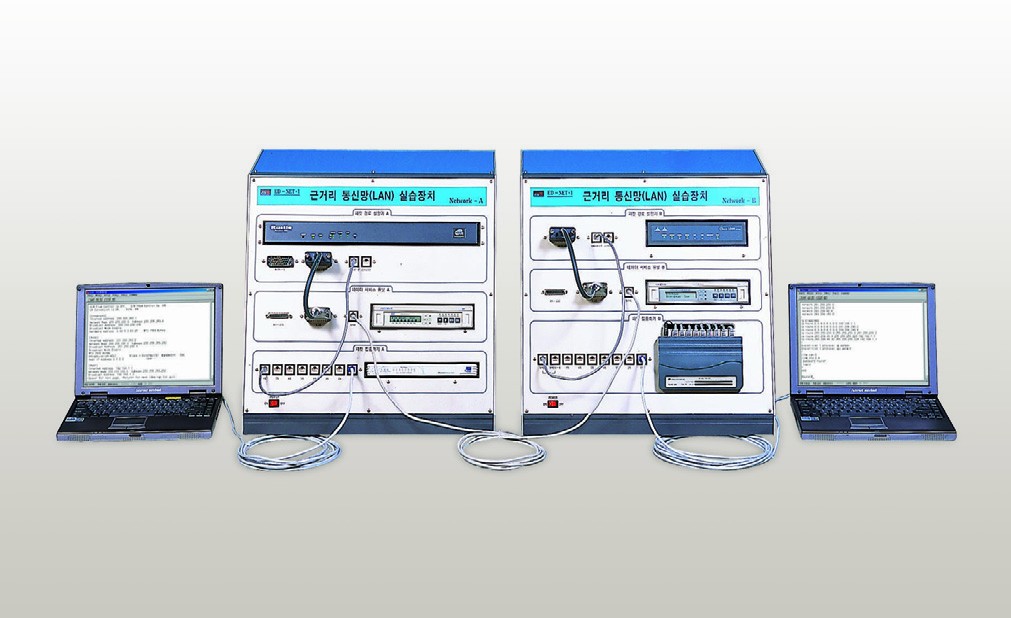

LAN Training System ED-NET-3

Cod: ED-NET-3




Brosura produs PDF, 0.72 Mb

Descriere



Covering experiment topics for a course of 8 weeks, each system set starts from basic theories and understanding of the essential equipments with real field installation, and ends with use of the installd network and identification of minitoring tasks. Each chapter of the Experimental Manual consists of theory(2 hours) and practice(2 hours)



EXPERIMENTS

  • Understanding of communication theory / protocol
  • LAN Card setup practice
  • Field practices for wire arrangement among the LAN products
  • Concept of HUB setup practice
  • DSU function, Line Path characteristics and use of Interface
  • Fuction of Router and interface setup
  • Opration of the program for packet Analysis
  • Network design and programming
  • Interlocking functionality for ADSL Training Sysem(ED-NET2 model)
