PC Based Analog Communication Trainer ED-1460

Cod: ED-1460




Brosura produs PDF, 1.11 Mb

Descriere

CONFIGURATION

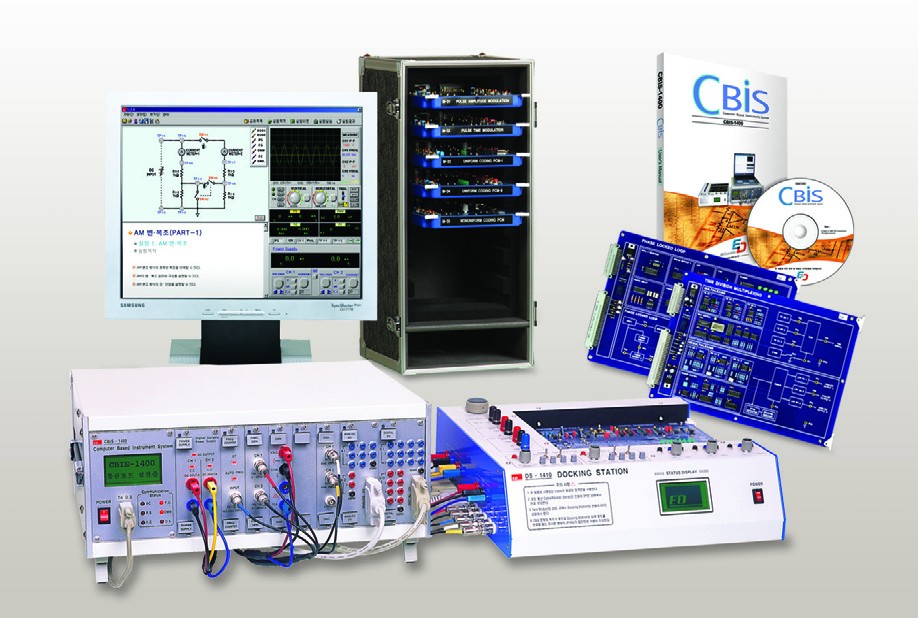

  • ED-1460 : PC Based Analog Communication Trainer
    • Number of Modules : 5ea
    • Size of modules : 290(W) x 210(H) x 26(D)mm
    • Module Storage Box(1ea) : 596(W) x 318(H) x 255(D)mm
  • Required System
    • DS-1410 : Docking Station(Option)
      • Please refer to page 24 on DS-1410 Specifications
    • CBIS-1400 : Computer Based Instrument System(Option)
      • Please refer to page 22 on CBIS-1400 Specifications
    • Computer(Option)



Features:

  • Interlocking system package with CBIS-1400 and DS-1410 Models (Options)
  • Experiments on a measurable low frequency bandwidth
  • Realistic experiments on modulation and demodulation
  • Verification of the output waveform on PC engaged with CBIS-1400 Model
  • Easy operation for checking each signal waveform (standard waveforms provided)
  • AM(Amplitude Modulation), FM(Frequency Modulation), PLL(Phase Locked Loop), FDM(Frequency Division Multiplex), TDM(Time Division Multiplex)
