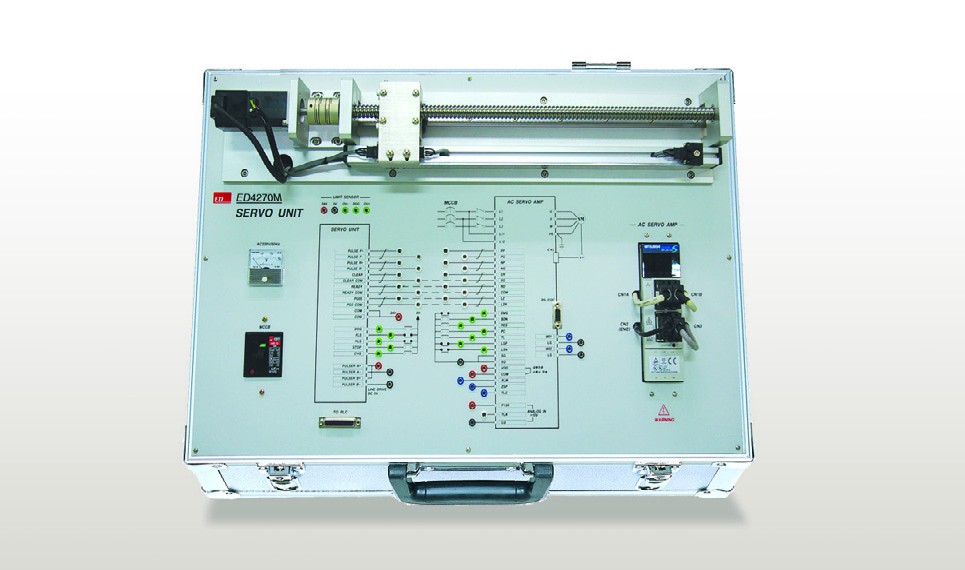

Servo Unit Trainer ED-4270M

Cod: ED-4270M



Brosura produs PDF, 0.52 Mb

Descriere

EXPERIMENTS

  • Determination of the position
  • Setup of the position unit and parameter
  • Characteristics of Servo Motor and setup of the Servo Driver
  • Wiring between Servo Motor and Programmable Logic Controller
  • Speed, Torque and Position control operation



SPECIFICATIONS



SERVO DRIVE

  • Control Circuit
    • Single Phase AC200~230V, 50/60Hz
    • 50W
  • Method of Control : Sine wave PWM control
  • Maximum Input Frequency (Pulse)
    • 500kpps(Differential Receiver)
    • 200kpps(Open Collector))
  • Resolution Per Rotation : 131072p/rev
  • Speed Control Mode
    • Analog Speed 1:2000
    • Internal Speed 1:5000
    • DC 0~10V/rotational speed
  • Torque Control Mode
    • DC 0~8V/torque



SERVO MOTOR

  • Power Facilities Capacity : 0.3kVA
  • Rating Output Capacity : 50W
  • Rating Rotational Speed : 3000(r/min)
  • Max. Rotation Speed : 4500(r/min)
  • Max. Current : 2.2(A)



CONTROL PANEL

  • Control Circuit
    • Display of the circuit diagram on the panel
    • Wiring practices for external I/O and control
  • Method of Control : 4mm terminal
  • Maximum Input Frequency(Pulse)
    • AL2t(Panton 427C coating)
    • Surface film strengthened By coating and heat treatment
  • Resolution Per Rotation
    • Power Circuit Breaker / Switch (circuit protection function)
  • Speed Control Mode
    • Interface Terminal(2ea)
    • RS-232C for Position Card/PC
  • Power Supply
    • Free Voltage 50/60Hz
    • Output : DC24V/2.5A
    • Built-in Protection Circuit



MAIN STRUCTURE

  • Ball Screw : 16 x 10R
  • Guide Unit : 1LM
  • Scale Unit : 300mm
  • Sensor
    • Limit detection
    • Home positioning



ACCESSORIES

  • AC Power Cord
  • Cable / Connector for CN1A
  • Encoder Cable Connector for CN2
  • Connector Cable for CN3A
  • PC Connection Cable
  • 4mm Cable Set
  • User’s Manual



Features:

  • Experiments on various types of special control unit
  • Characteristics of Servo Motor and setup of Servo Driver
  • Essential components in automation using a PLC position module
  • 4mm banana jack to increase wiring capability
