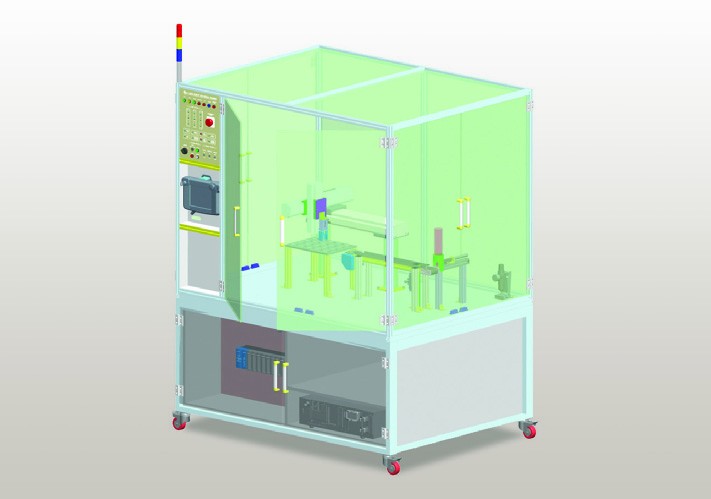

4-axis Rectangular Coordinates Robot Trainer ED-XYZ

• Mountable 5 type of MCU(8051,PIC, Atmega128, Atmega8535, Upd78f0547)
• Practice of various communications such as RS-232 USB and Ethernet
• Practice from basic I/O exercises to sensor application exercises with 5 MCU’s
• Possible of various practice by using of Bread Board and I/O Expansion Port
• Storage of sensor data display and Excel data using UI(LabVIEW)



• Basic to advanced learning courses for Embedded Linux
• Intel PXA255(400MHz) high-performance microprocessor
• 6.4TFT LCD, Ethernet 2port, Serial 3port, PCMCIA/CF/MMC interfaces
• FPGA Chip(Altera Cyclone 120,000Gate) mounted for SoC experiments
• Reliable hardware and abundant experiment contents for programming



• 7 experimental modules with a mainframe console
• Harmonic Analysis and Superheterodyne Receiver experiments
• PCM(TDM), Sample Hold, and Delta Modulation experiments



• High-performance digital synthesizer method
• Wide Frequency Coverage : 9 kHz ~ 3.0 GHz
• Superior Resolution : Minimum 1 Hz
• Compact & Portable size
• Pre Amp as standard
• Wide Input Dynamic Range : -130 ~ 20 dBm
• Various and Convenient Interfaces : USB, LAN



• Experiments on Servo Motor control techniques using Servo Driver
• Aluminum carrying case for convenient storage and mobility
• JOG operation, PLC control operation, PC control operation
• Various types of control elements easily to be mounted
• Capable of checking normal operating voltage / over current by voltmeter and ammeter



• Covers essential circuits needed to practice power electronics circuits
• Modular type with aluminum carrying case
• Optional rack to be customized upon requst



• Convenient parts fixation by ‘one-touch lever’ bases and aluminum profile structure
• Efficient space utilization by mounting parts horizontally/vertically
• 41 transparent hydraulic and electrical/electronic parts plus various optional components.
• Various hydraulic devices and components for Flexible Manufacturing System



• PC-based multi-function instrument for electricity/electronics and other experiments
• Digital Storage Oscilloscope with the 2-channel simultaneous 50MS/s sampling rate
• Spectrum Analyzer functions using Digital Storage Oscilloscope(DSO)
• Variable Power Supply(VPS), Function Generator(FG), Analog Output and Digital Output
• Analysis of collected data on PC through the modules of DSO, DMM, FC and Analog/Digital Input
• Numerical and graphical indication of the data measured and analyzed in real time



• Analog feedback loop & DC servo system
• Modularized by the function of servo circuits
• Overload protection for the servo amp's and power supply's output



• Ideal for the Ubiquitous and Home Network based experiments
• Home security experiments on utilization of its unattended security function
• Robot control API using Visual C++ and control functions by Visual Basic Scripter
• Next Generation Cell(Lithium Lon) - compact size and increase in life time
