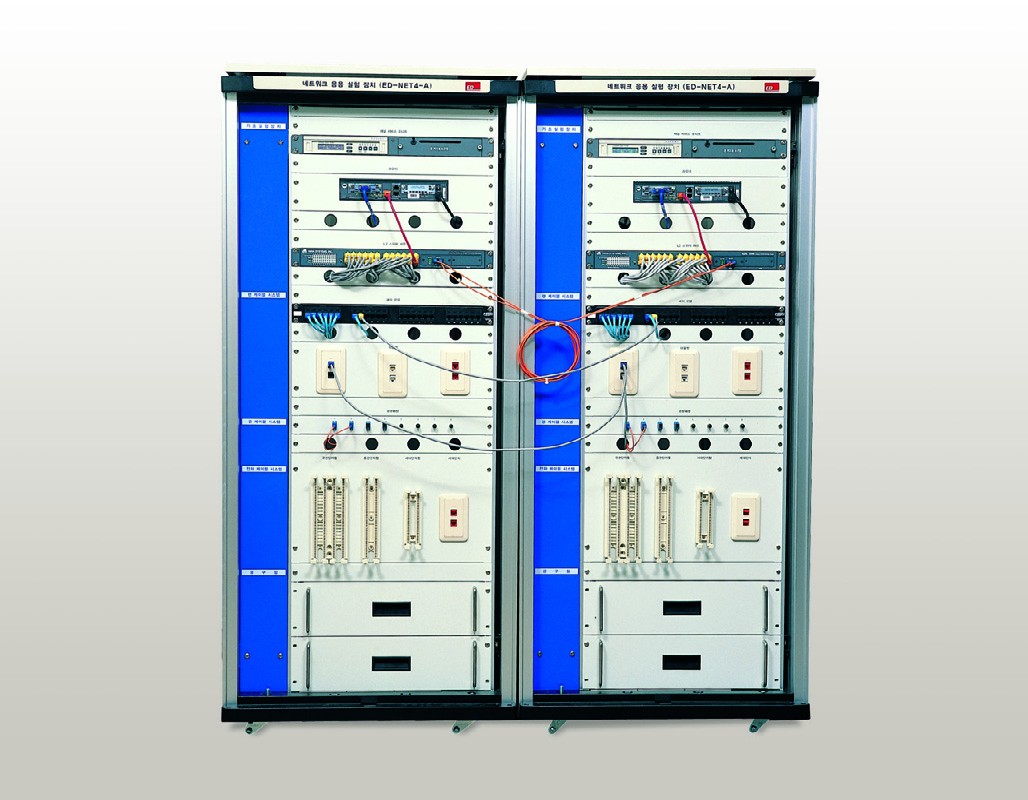

Network Training System Series ED-NET4-x

• Hi/Lo Logic Switch
• BCD hexadecimal indication LED
• Built-in DC power supply(+5V,+9V,±15V)
• Voltage and current meter
• DC overload alarm and indication
• Variable and single pulse generator



• Mountable 5pieces MCU(8051,PIC, ATmega128, ATmega8535, upd78F0547)
• Practice of various communications such as RS-232 USB and Ethernet
• SoC experiments using the default FPGA (EP1C4F324)
• Storage of sensor data display and excel data using UI(LabVIEW)



• Interlocking system package with CBIS-1400 and DS-1410 Models (Options)
• Experiments on a measurable low frequency bandwidth
• Realistic experiments on modulation and demodulation
• Verification of the output waveform on PC engaged with CBIS-1400 Model



• Basic to advanced learning courses for Embedded Linux
• Intel PXA255(400MHz) high-performance microprocessor
• 6.4TFT LCD, Ethernet 2port, Serial 3port, PCMCIA/CF/MMC interfaces
• FPGA Chip(Altera Cyclone 120,000Gate) mounted for SoC experiments
• Reliable hardware and abundant experiment contents for programming



• Experiments on the industrial SCARA robot
• Teaching pendant in 7.5wide color touch panel
• Standard language for the international industrial robot
• Simulation software in three dimension



• Covers essential circuits needed to practice power electronics circuits
• Modular type with aluminum carrying case
• Optional rack to be customized upon requst



• Helps understand theories on the Microstrip Line Theory and Microwave Elements Design
• Composed of 22 types of modules such as VCO using Coupler, Divider, Circulator, Attenuator and Filter
• SWR Detector, Modulation, Transmission/Reception, Detector, Self-Oscillation functions



• Experiments on various types of special control unit
• Characteristics of Servo Motor and setup of Servo Driver
• Essential components in automation using a PLC position module
• 4mm banana jack to increase wiring capability



• Enriched examples for the beginning level to an advanced level in the robot class
• Easy to mount modules by the clamping device
• USB high speed(480Mbps) interface
• Extensive learning for the sensors being used in the field of Ubiquitous and Home Network
• Image processing practice using USB Camera



• The Electronic Manual operable on PC comes with ED-1440 and e-learning is optimized by remote control of student’s operating program and evaluation of student’s online peport in real time.
• Through DS-1410, it provides Variable Power Supply(VPS), Function Generator(FG), Analog Output, Digital Output needed for experiments.
