Trusa curent-tensiune pentru verificarea releelor de protectie Megger FREJA 300

Cod: Megger FREJA 300 Programma FREJA300 CF-19091




Brosura produs PDF, 0.81 Mb


Descriere

• can generate 4x150 V (82 VA) and 3x15 A (87 VA) or 1x45 A (250 VA).

• Manual and automatic control
• Easy to use

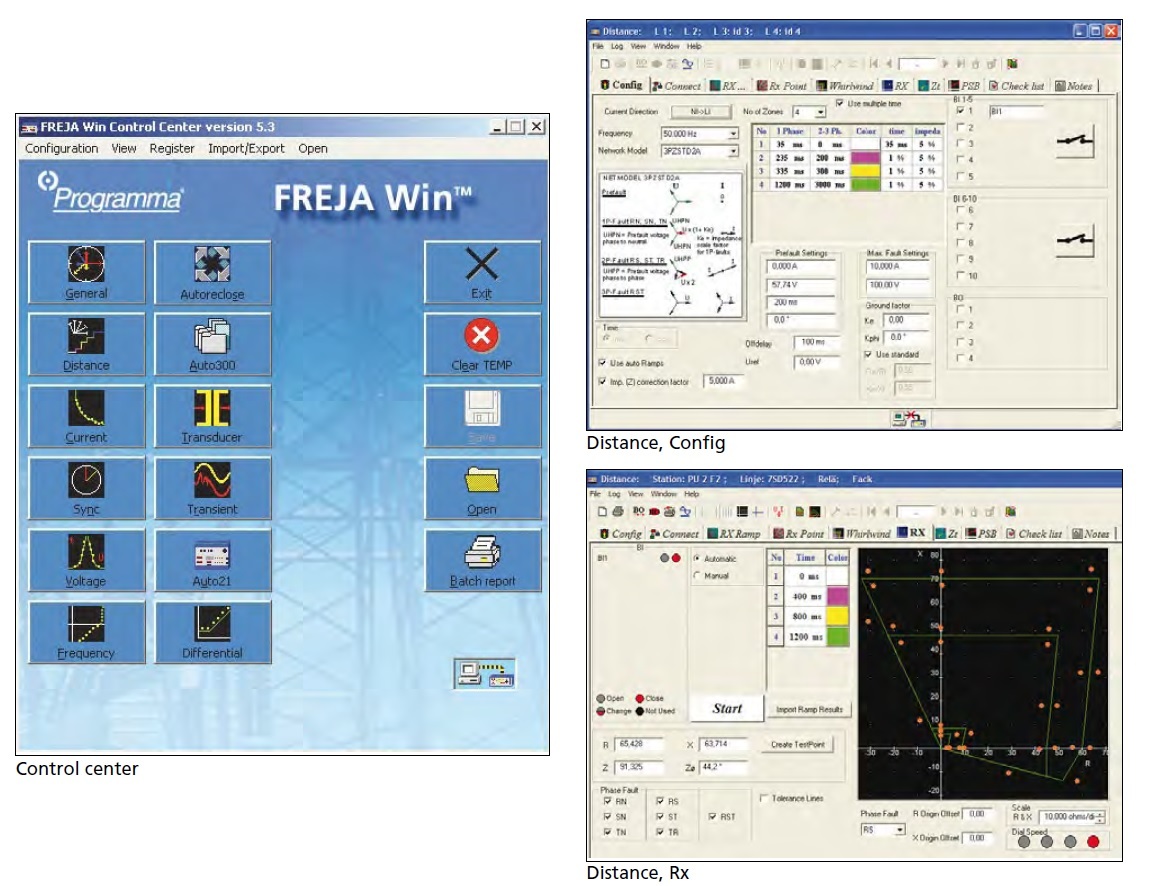

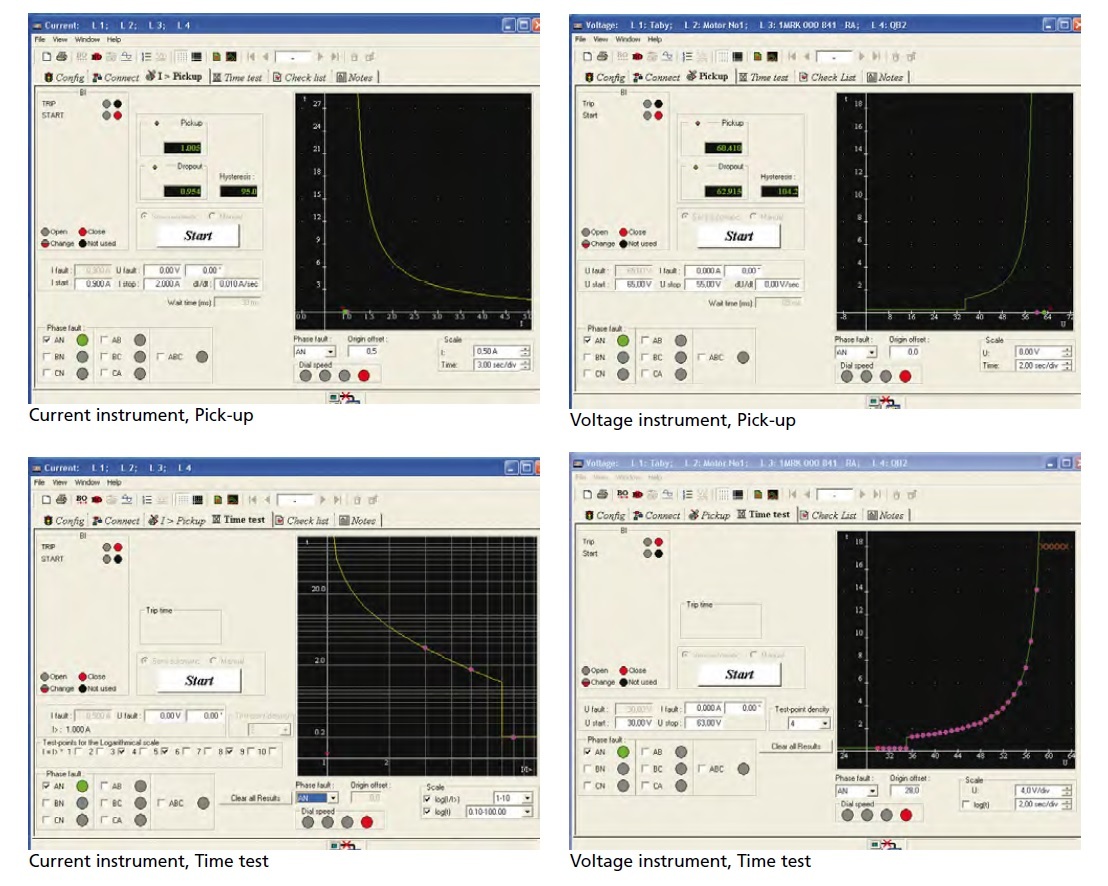

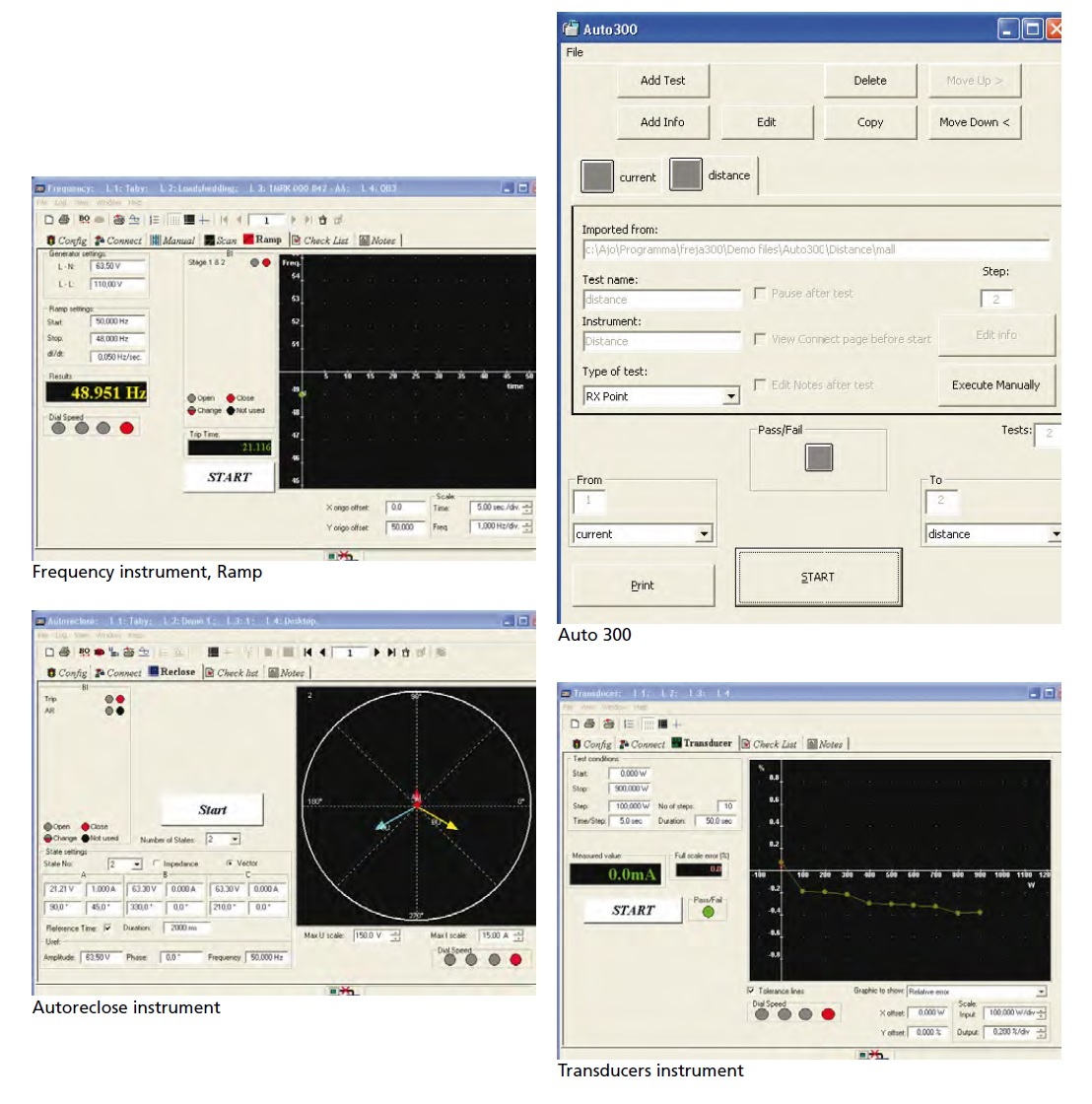

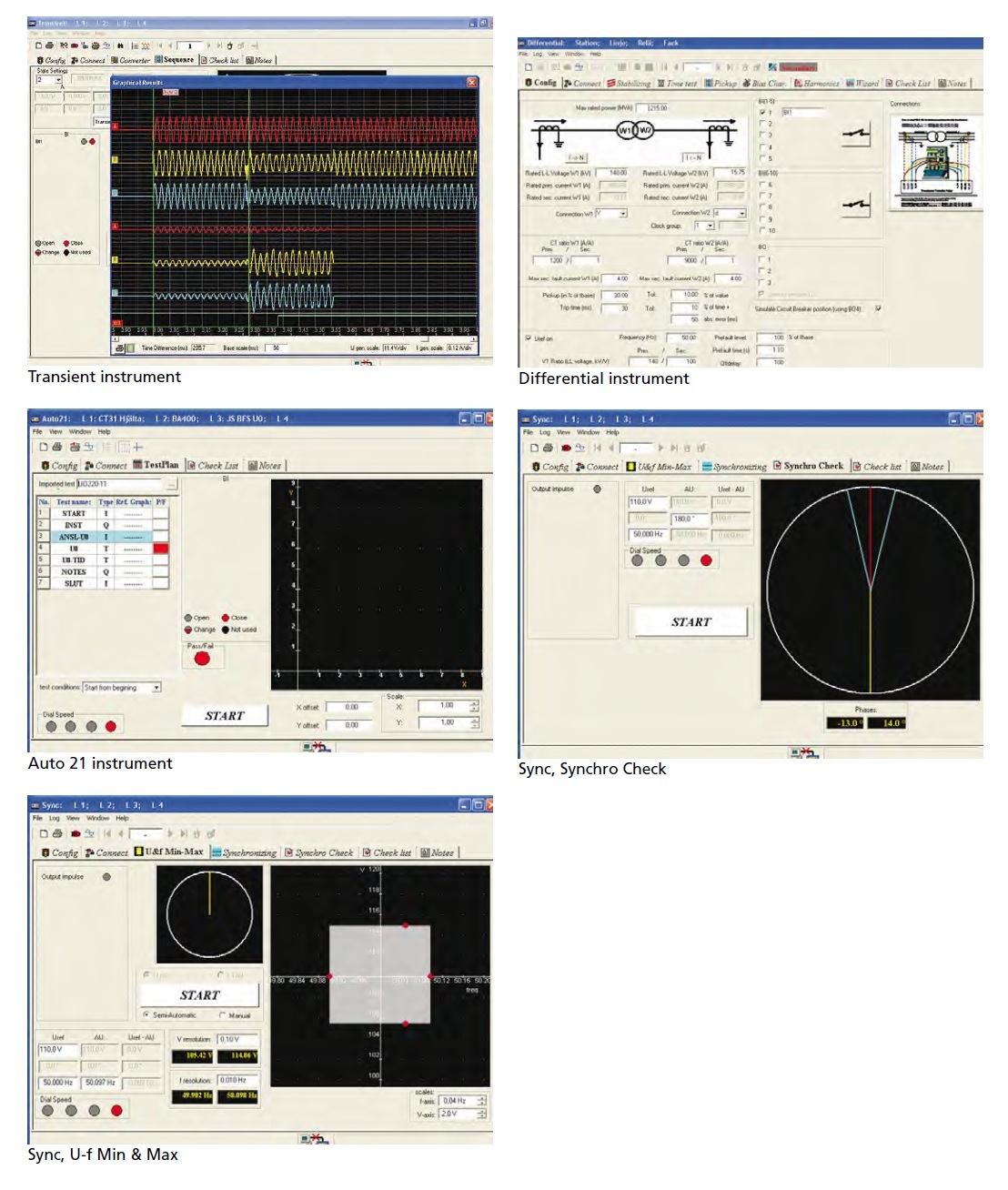

• Excellent software provides great visuals and simple setup
• Lightweight and portable
• Highly accurate
• User can calibrate unit

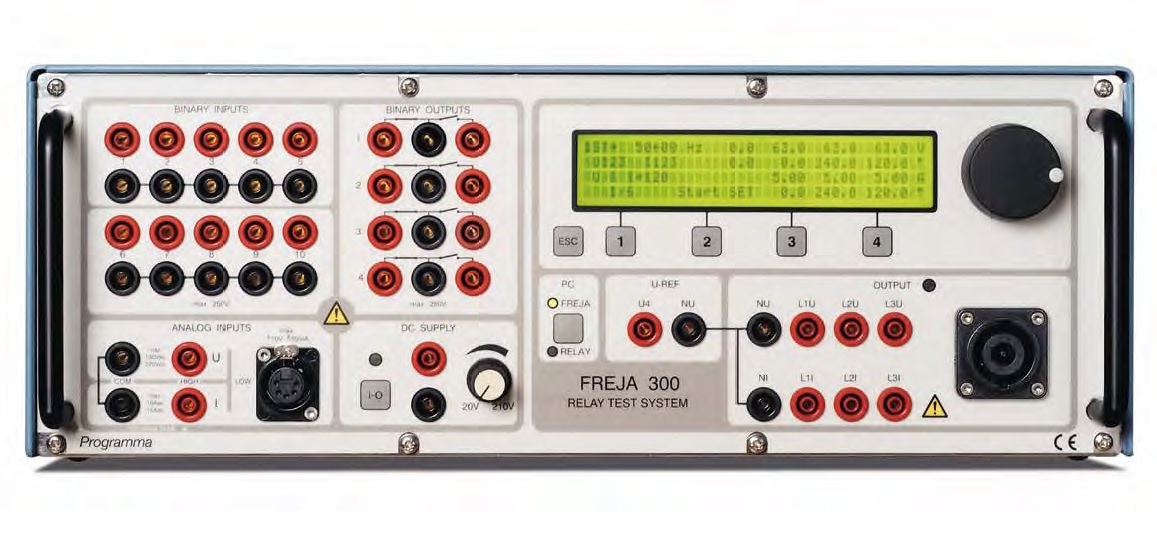

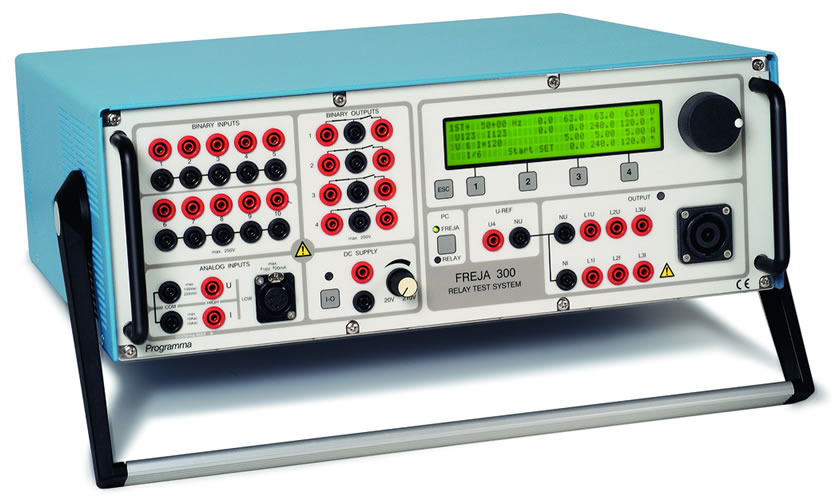

The FREJA 300 relay testing system is a computer-aided relay testing and simulation system. The weight of FREJA 300 is only 15 kg. The rugged hardware design is built for field use over a wide temperature range, with the possibilities of intelligent software to perform rapid testing.

FREJA 300 is intended primarily for secondary testing of protective relay equipment. Virtually all types of protection relays can be tested.



Accesorii standard

FREJA 300

Complete with: FREJA Win, Two test lead sets, Hard

transport case CF-19091

Same as above but with soft transport case CF-19090



FREJA 300 basic unit CF-19001



FREJA 300, LLA Rogowski option

Complete with: FREJA Win, Two test lead sets, Hard

transport case CF-19095

Same as above but with soft transport case CF-19094



FREJA 300 Basic Unit, LLA Rogowski option CF-19004

Optional



FREJA Win

Software CF-90090



Rebuild FREJA 300 to FREJA 306 CF-90090



FREJA Win upgrade CF-8282X



Optiuni recomandate

Optional accessories

FREJA Multi-cable

Shortens hookup time considerably. Consists of a

multi-pole connector that connects to FREJA’s three

voltage and three current outputs, and a number of

banana plugs that connect to the protection relay

that is to be tested. GA-00103



Test lead set

With touch-proof contacts.

2 x 0.25 m (0.8 ft) / 2.5 mm2

2 x 0.5 m (1.6 ft) / 2.5 mm2

8 x 2 m (6.5 ft) / 2.5 mm2

Weight: 0.8 kg (1.8 lbs).

Normally you need two sets. GA-00032



Calibration box CF-90100



GPS200 - MGTR

The GPS receiver GPS200 - MGTR makes it possible

to synchronize two or more FREJA to conduct endto-

end testing. End-to-end testing provides quick,

reliable results showing how two or more protection

relay systems interact. The unit comes with a 15 m

(50 ft) cable and an allweather antenna. Longer

cables can be ordered. CF-90150



Cable organizer

Velcro straps, 10 pcs. AA-00100



Floor stand FREJA 300/306

For working in standing position with FREJA GB-00300



IPS RELEX

IPS RELEX is a database for relay protection. For

more information please visit our web site or contact

customer service relay protection department.
