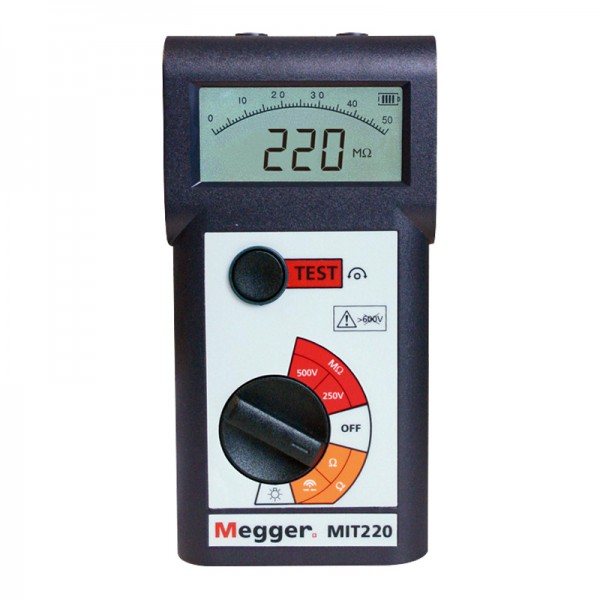

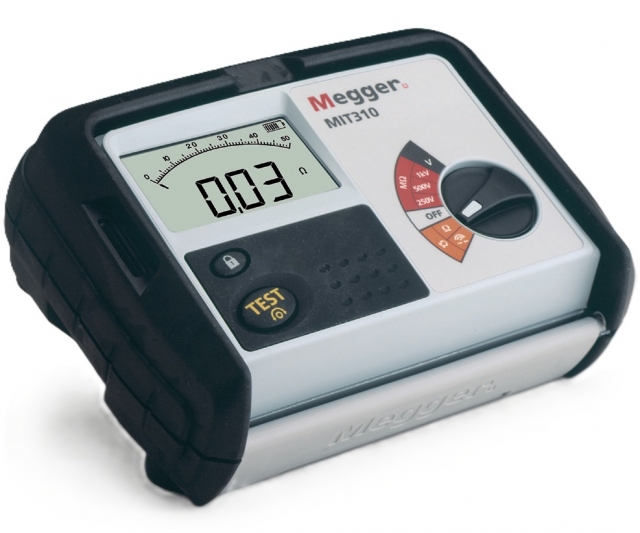

Ambele produse combina afisajul numeric cu cel analogic, folosind tehnologia de afisare DART, care este brevet Megger. Afisajul permite o afisare clara, precisa de tip digital si un indicator analogic pentru evaluarea caracteristicilor de ½ncarcare si descarcare a circuitului. Carcasa robusta din plastic ABS este proiectata sa reziste rigorilor unor utilizari dure ½n timp ce dimensiunea este suficient de mica pentru a fi pastrat ½n buzunar. Indicatorul de stare al bateriilor ofera o avertizare timpurie pentru epuizarea bateriilor.

Testarea izolatiei

Sunt disponibile doua sau trei tensiuni de test asigur½nd solutia ideala pentru majoritatea aplicatiilor din zona tensiunilor joase
Masurarea rezistentei de izolatie p½na la 1000 M? pe toate domeniile
Descarcarea automata ne asigura ca toate circuitele sunt descarcate sigur dupa ½ncheierea testelor
Tensiunea de test a izolatiei de 1000 V are o avertizare de ½nalta tensiune ½nainte de a aplica tensiunea

Testarea continuitatii

Testarea automata a continuitatii se face cu 200 mA, asigur½nd astfel conformitatea cu cerintele internationale. Nu este necesara apasarea butonului de test
Toate instrumentele vor masura continuitatea p½na la 100 ?, din care ½n intervalul 0-10 ? cu un curent mai mare de 200 mA pentru a respecta cerintele de test internationale
Compensarea rezistentei cablurilor de masura este posibila p½na la valoarea de 9,99 ?, at½t pentru cordoanele prevazute cu sigurante de protectie c½t si pentru cele standard

Buzzer de continuitate

Buzzer-ul de continuitate ofera posibilitatea testarii rapide a cablurilor si identificarea circuitelor. ½n plus protectia de tensiune permite conectarea accidentala la circuitele sub tensiune
Pragul de declansare al buzzer-ului este de 5 ?

Alte produse MEGGER

MICROOHMETRU 600A MEGGER DLRO600

• Small and weighs less than 33 lbs (15 kg)
• Test currents from 10 A to 600 A dc
• 0.1 µohms best resolution
• On board memory for up to 300 test results and notes
• RS232 port to download stored results or for real time output to a printer
• Supplied complete with 16.4 ft (5 m) test leads and download software

TESTER RELEE DE PROTECTIE TRIFAZATE MEGGER SMRT33

• Small, rugged, lightweight and powerful
• Operate with or without a computer
• Intuitive manual operation with Smart Touch View Interface
• High current, high power output - (45 Amps/300 VA rms) per phase
• Network interface provides IEC 61850 test capabilities
• Fully automated testing using AVTS software

CIRCUIT BREAKER TESTER RETROFIT MEGGER ½ DDA1600

• Digital signal processing technology
• Variable firing angle and pulse duration
• Modular, portable design
• Complies with NEMA AB-4 Test Guidelines

TESTER LUNGIME CABLURI ELECTRICE, PUTERE, TELEFONIE CATV LAN SI REFLECTOMETRU TDR MEGGER TDR900

• Full autoranging for measuring the length of power, telephony, CATV and LAN cables, provides distance to an open or short.
• Extra large, high resolution backlit LCD.
• Automatic output impedance control of 25, 50, 75, 100, 125 or 150 ohms.
• User-friendly menu on screen operation.
• Cable length calibration function.
• Internal library of 39 standard cable types.

KARL FISCHER MOISTURE IN OIL TEST SETS MEGGER ½ KF875 AND KF-LAB MKII

• Coulometric Karl Fischer titrimetry
• KF875 optimized for insulating oil with an SG of 0.875, completely portable
• KF-LAB MkII offers greater flexibility, versatility and sample data input than the KF875; also completely portable
• KF-LAB MkII analyzes materials with an SG between 0.6 & 1.4, plus insulating oils with an SG of 0.875

UNIVERSAL CIRCUIT BREAKER TEST SETS MEGGER DDA-3000 AND DDA-6000

• Model DDA-1 Digital Data Acquisition Instrumentation and Control System
• High-current output: 60,000 A for Model DDA-6000; 35,000 A for Model DDA-3000
• Digital signal processing (DSP) technology
• Variable pulse time and firing angle output current control
• Compliant with NEMA AB-4 test guidelines

REFLECTOMETRU 2-CANALE LOCALIZARE DEFECTE CABLU MEGGER TDR2000/2P

• TDR20000/2P can perform single or dual channel measurements on a wide range of metallic cables
• dead or Live cables to CATIII 300V Phase to earth or 415V phase to phase can be tested.

BOND TESTER MEGGER - BT51

• High test current
• Four terminal measurement
• Two measuring ranges (2000 mO. and 20,00 mO.)and maximum resolution of 0,01 mO.
• Protected against inadvertent connection to the mains supply

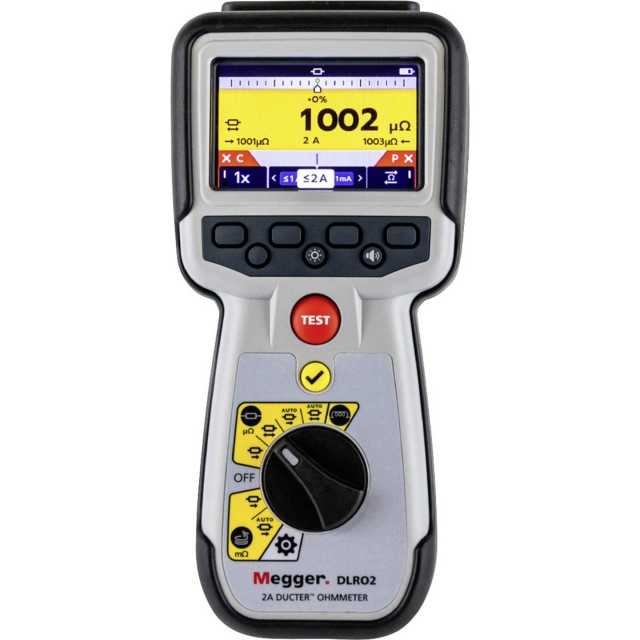

MICROMMETRU PORTABIL 2A MEGGER DLRO2X
